Tube and thread type selection
If you select the detail type, only the product type of that type is displayed.

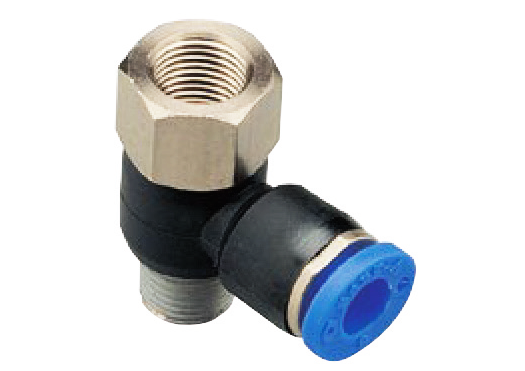

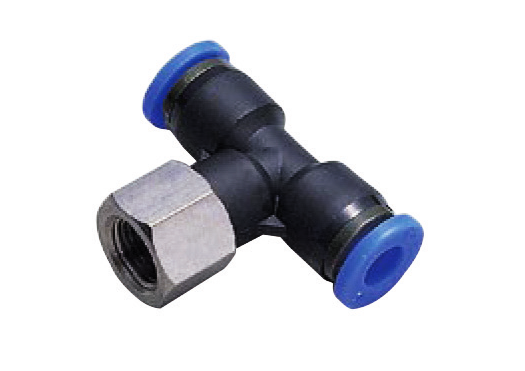

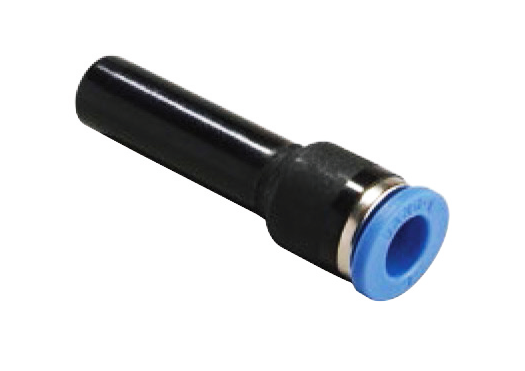

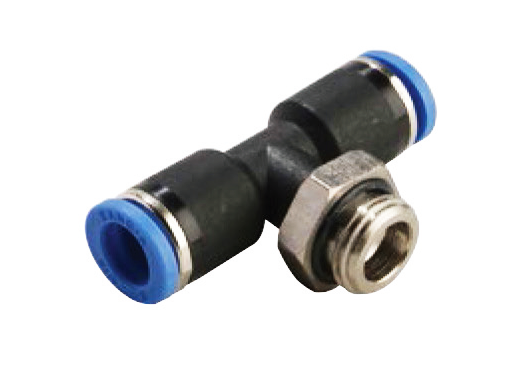

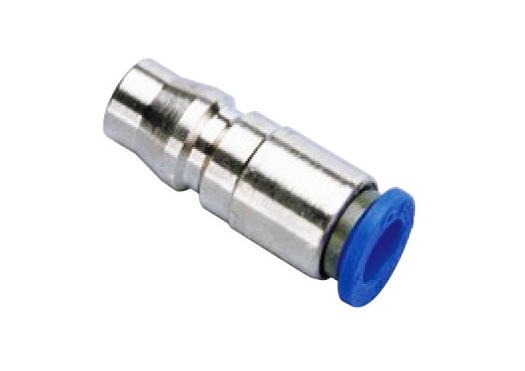

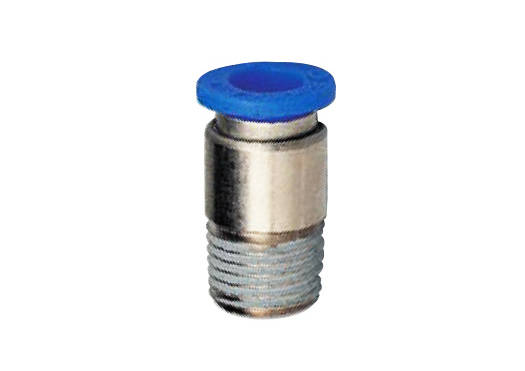

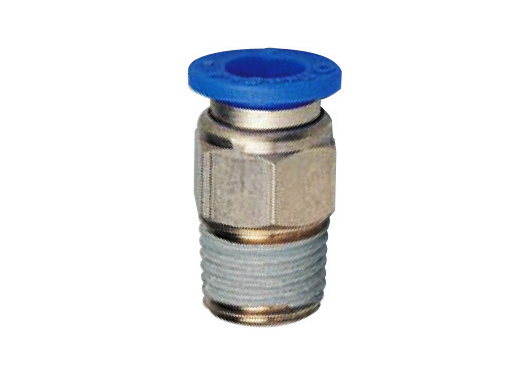

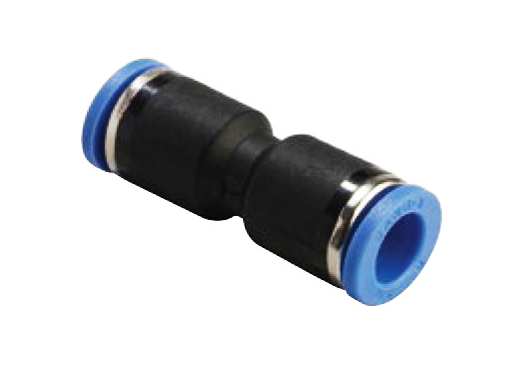

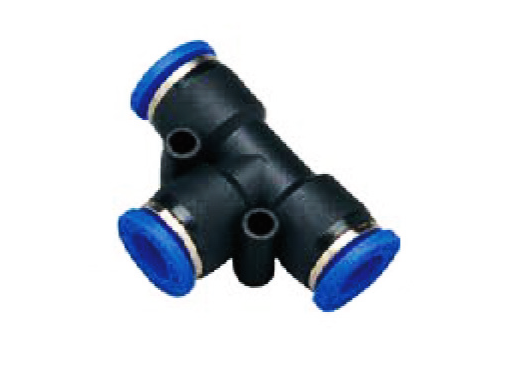

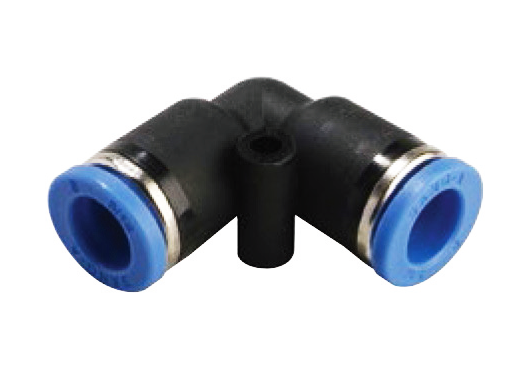

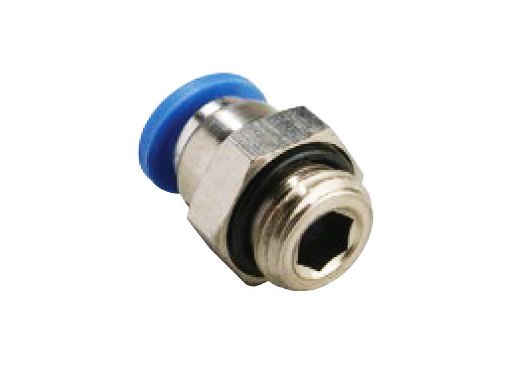

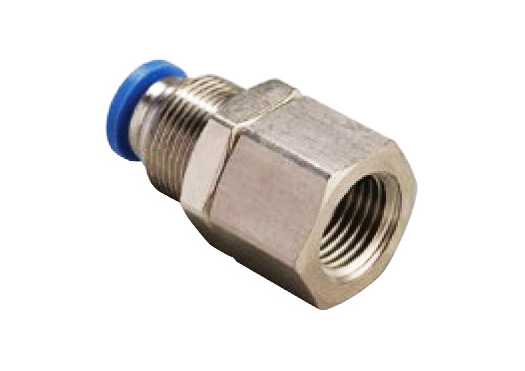

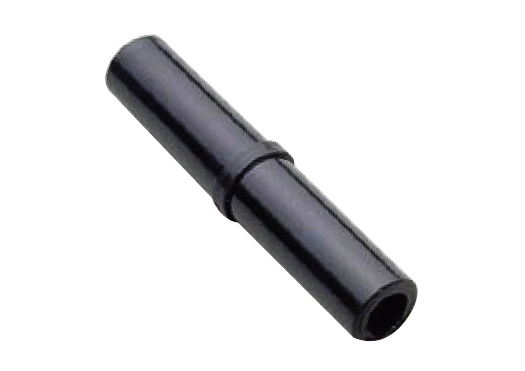

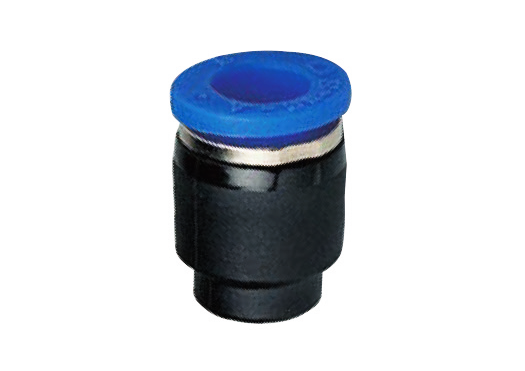

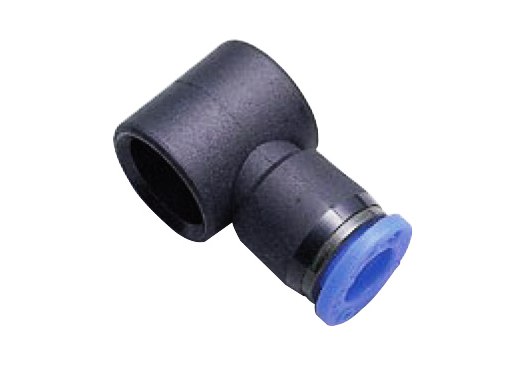

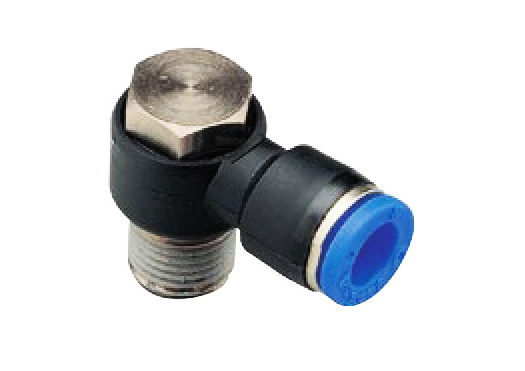

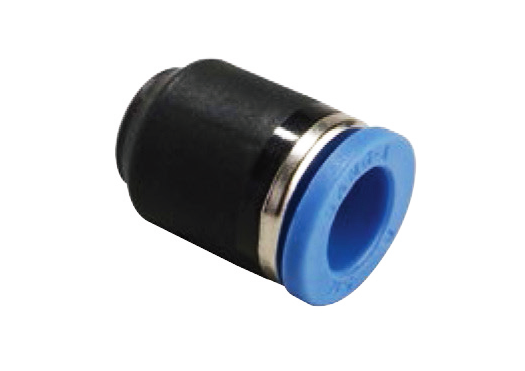

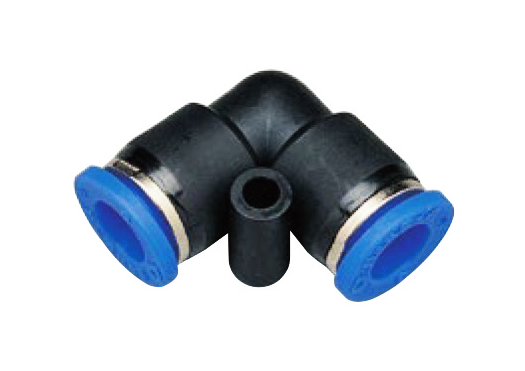

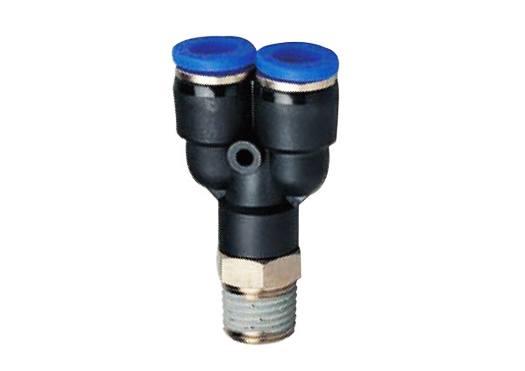

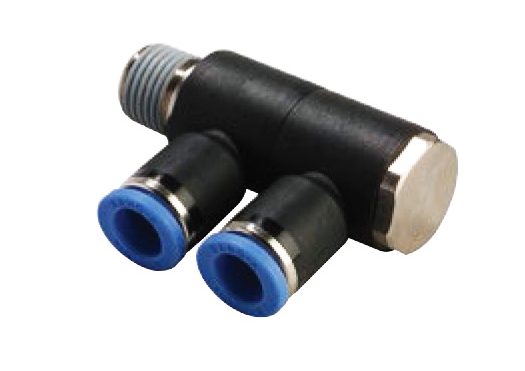

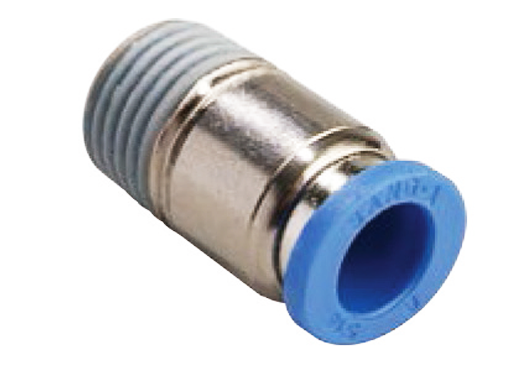

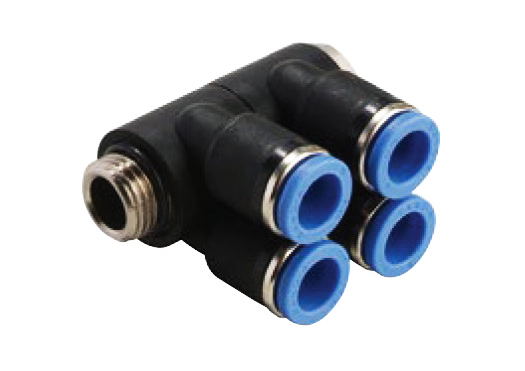

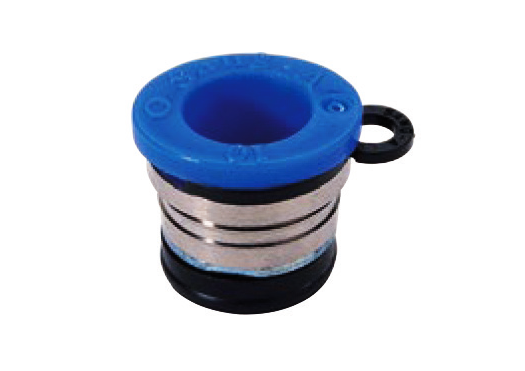

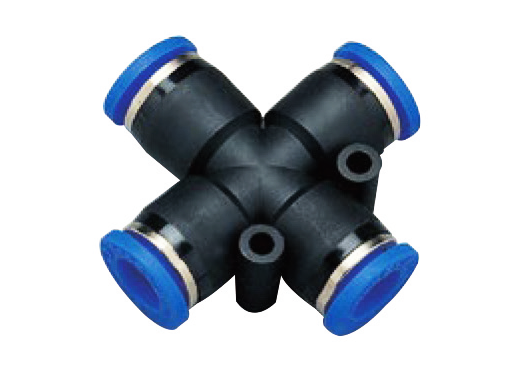

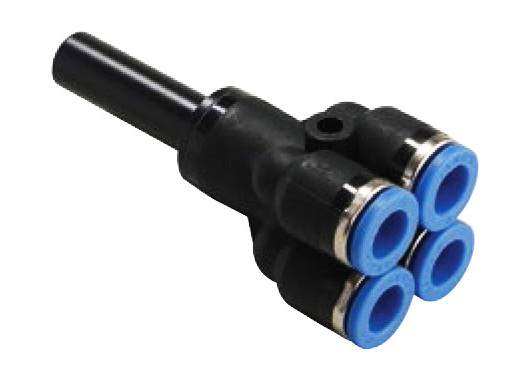

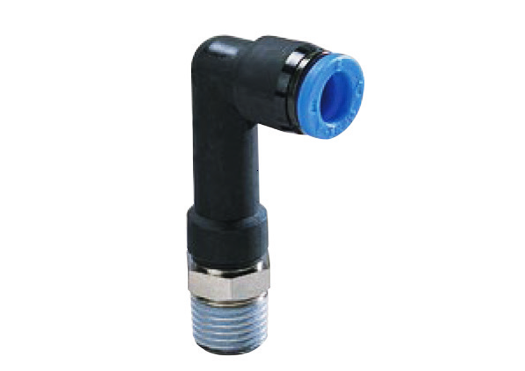

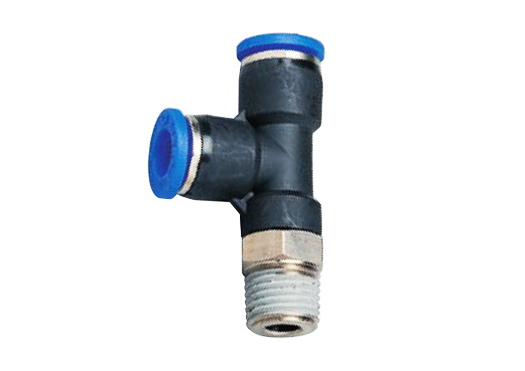

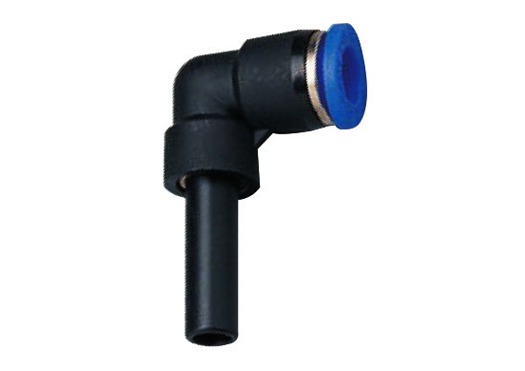

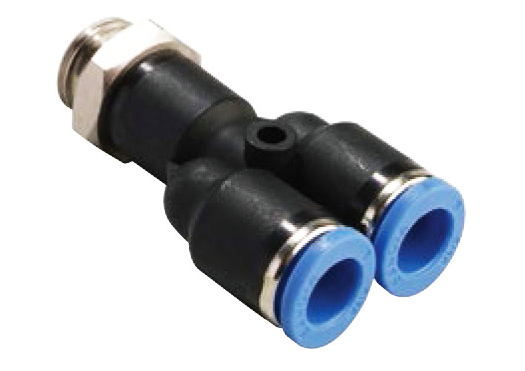

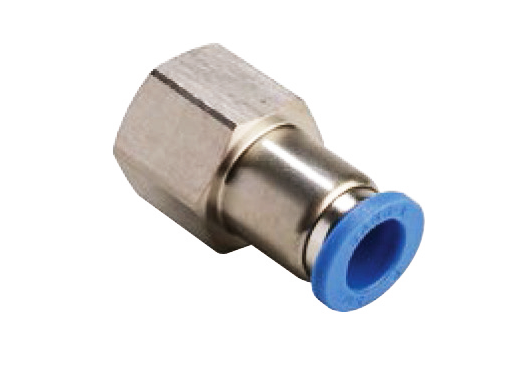

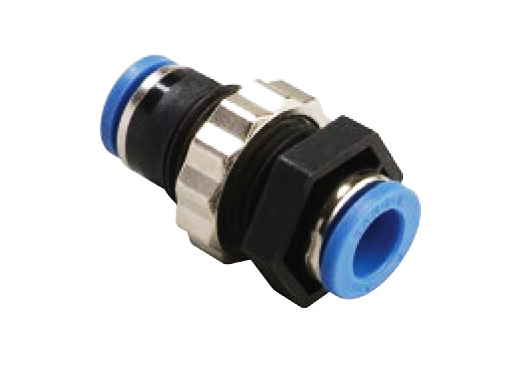

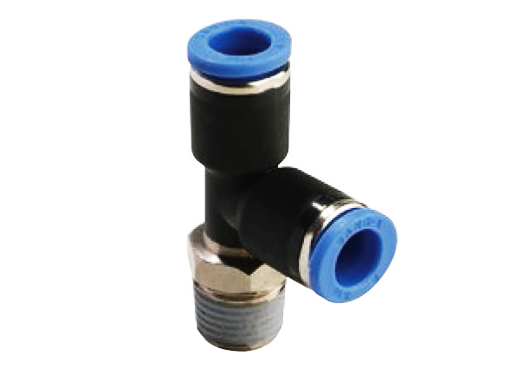

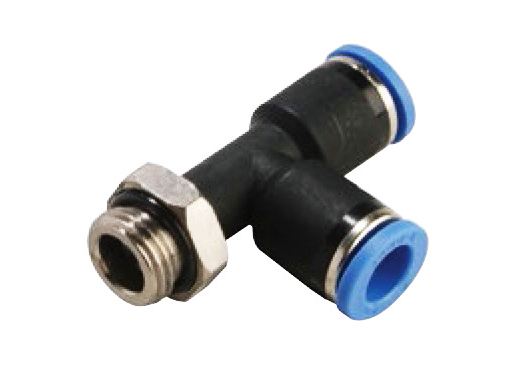

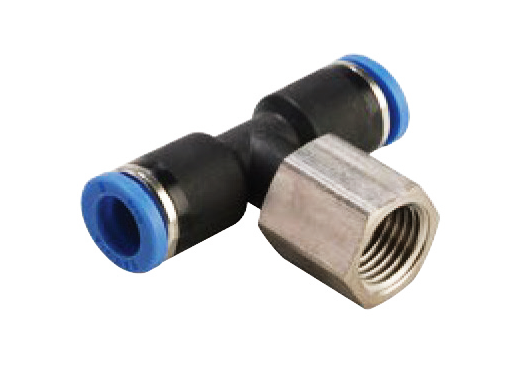

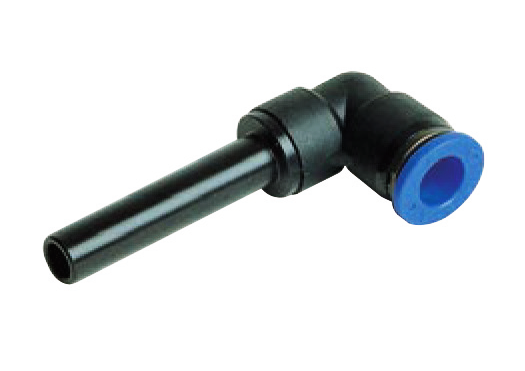

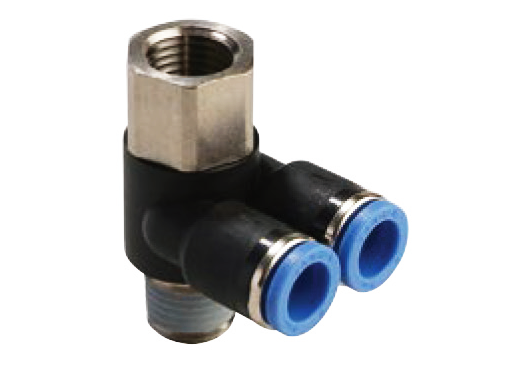

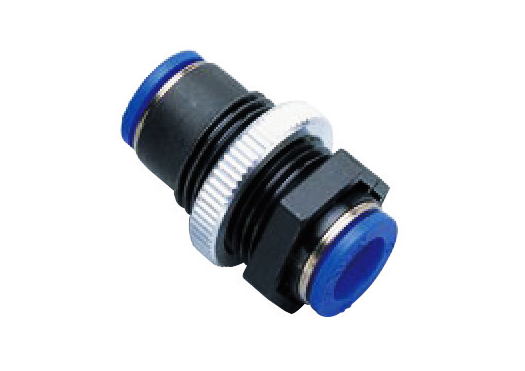

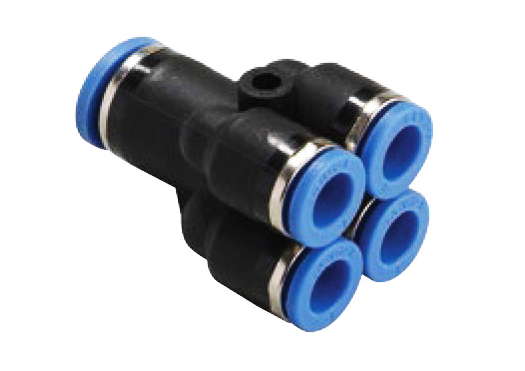

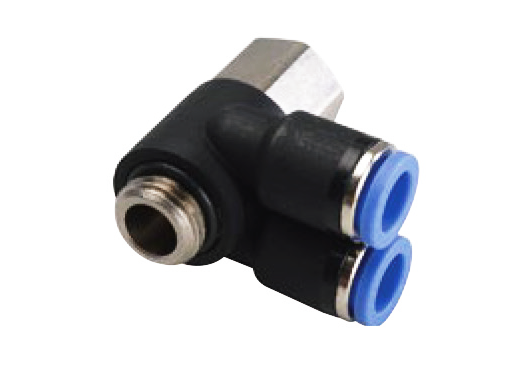

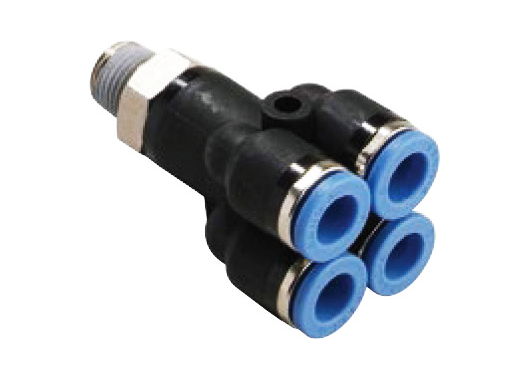

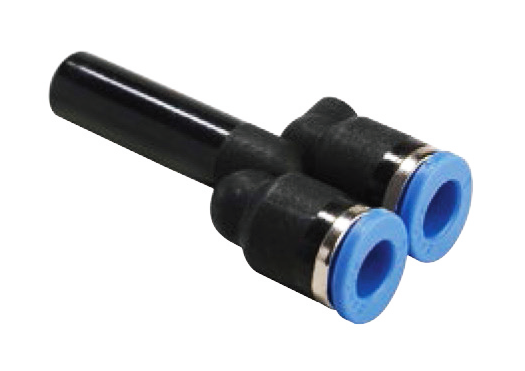

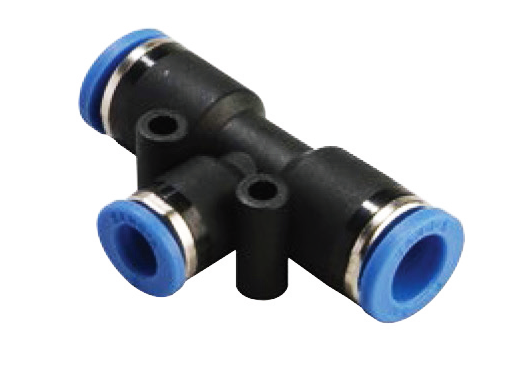

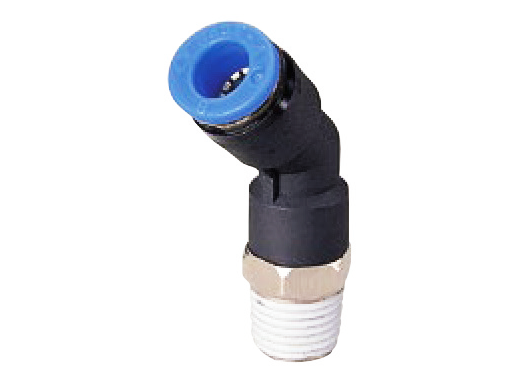

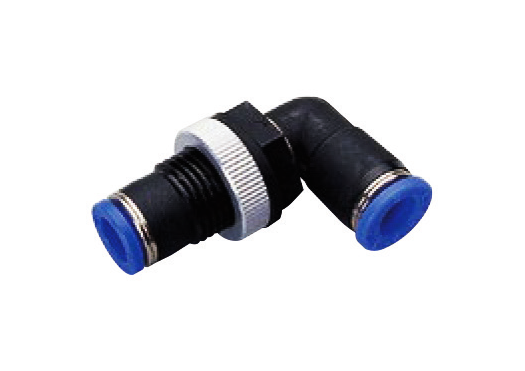

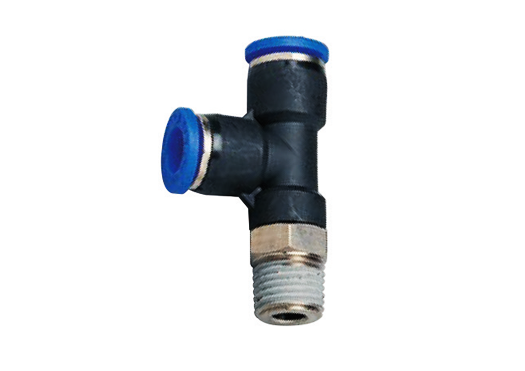

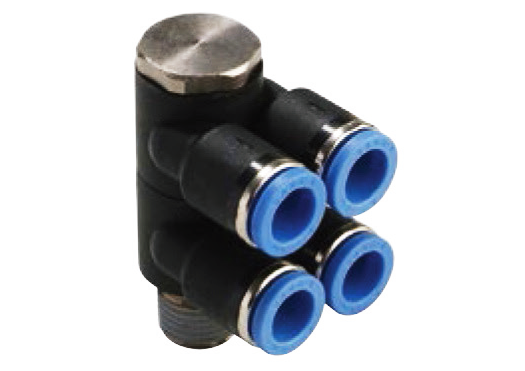

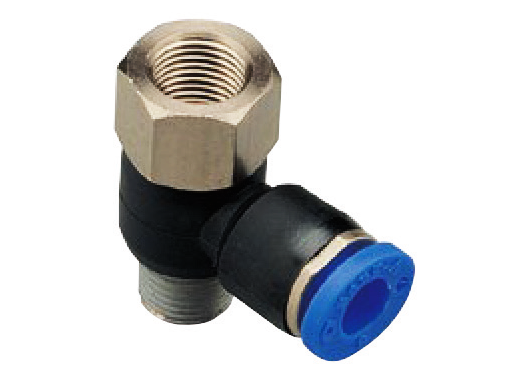

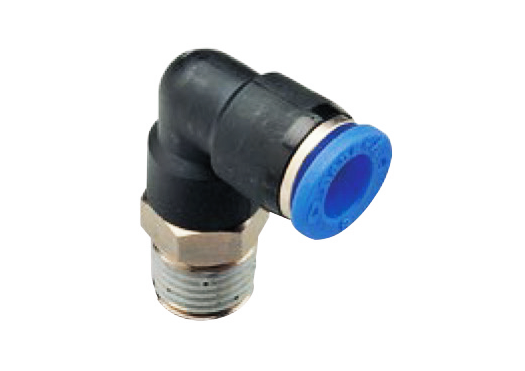

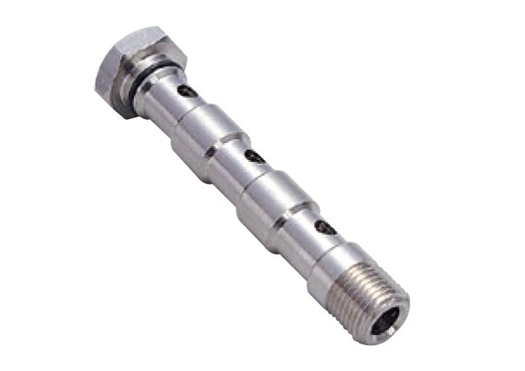

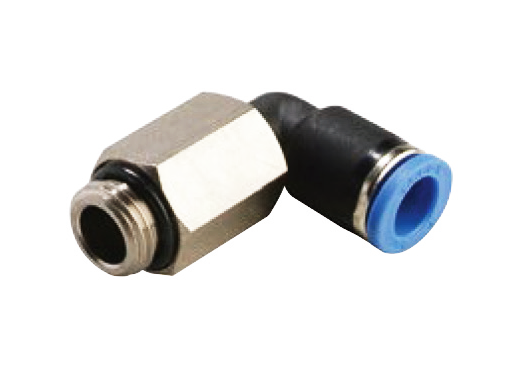

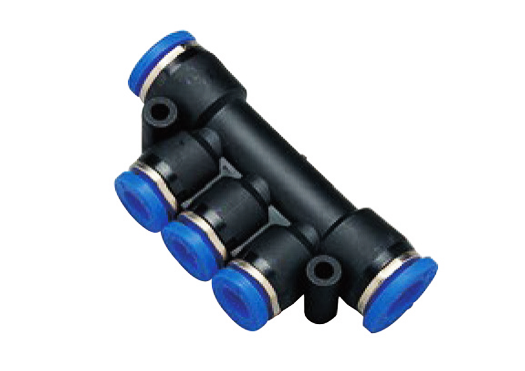

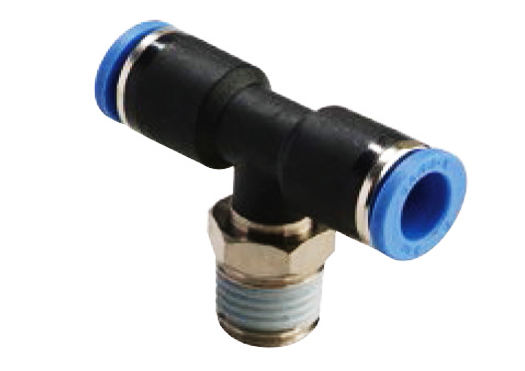

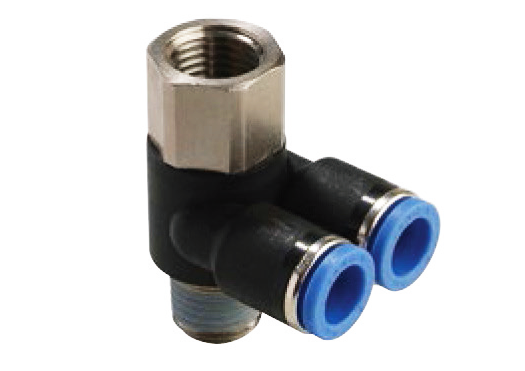

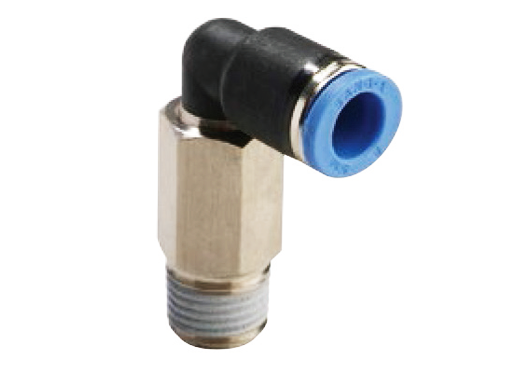

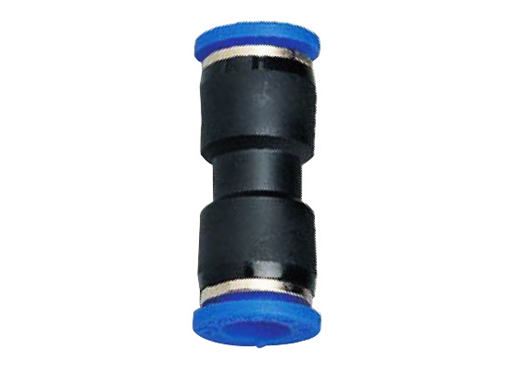

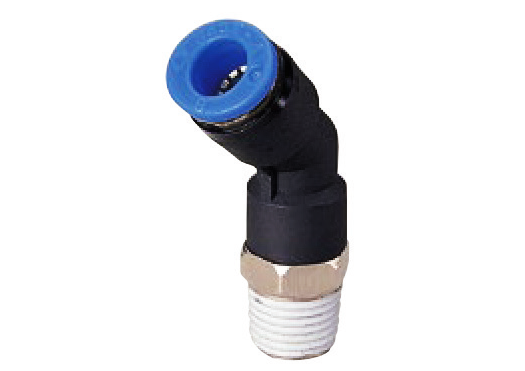

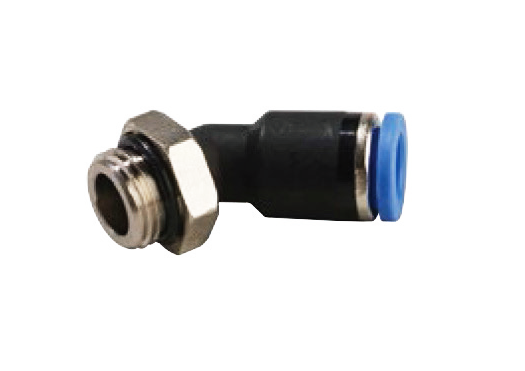

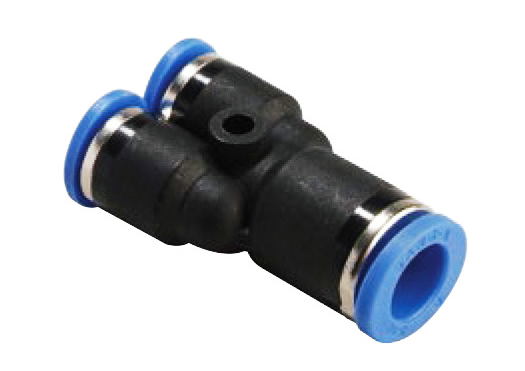

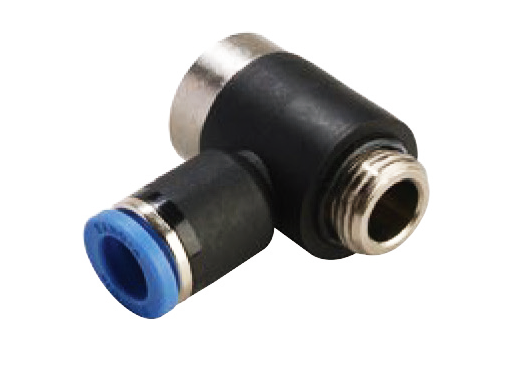

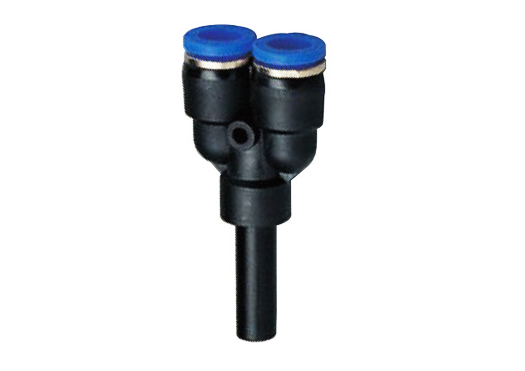

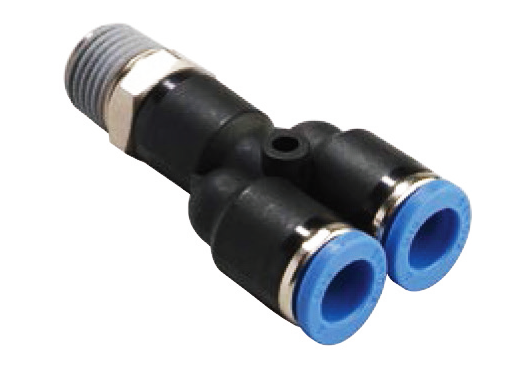

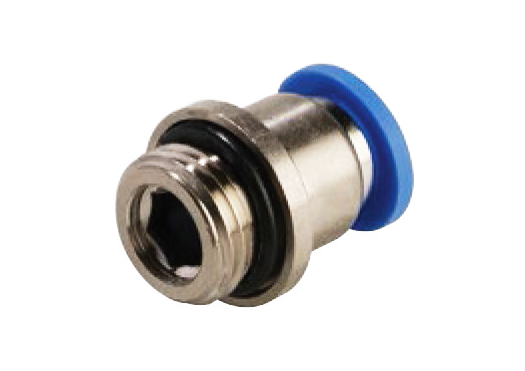

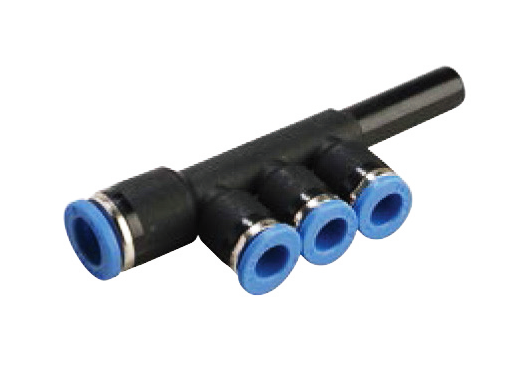

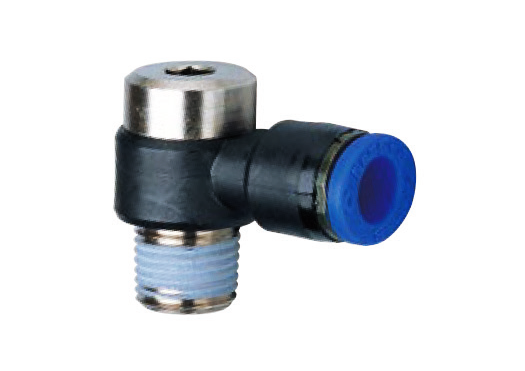

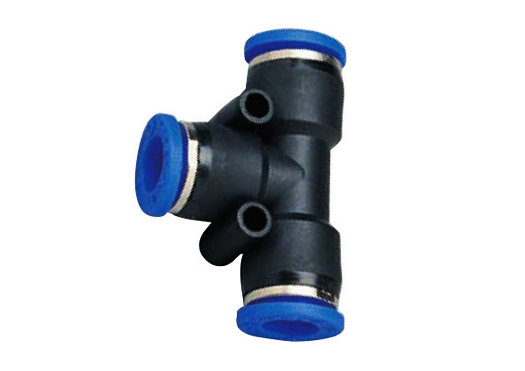

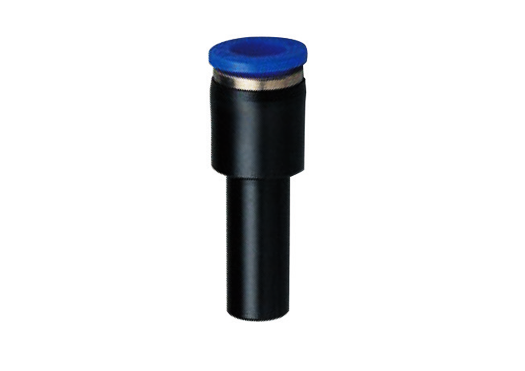

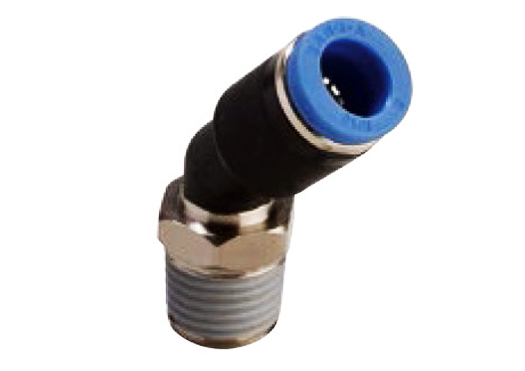

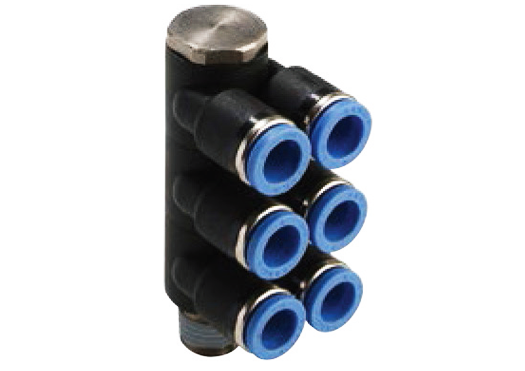

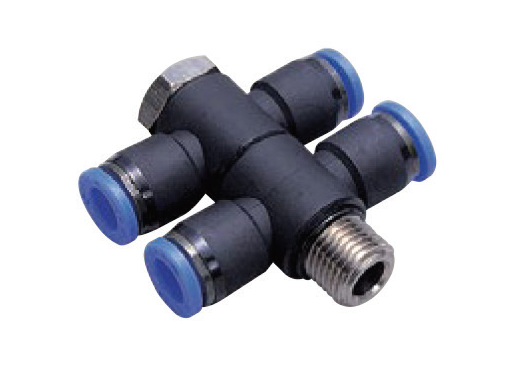

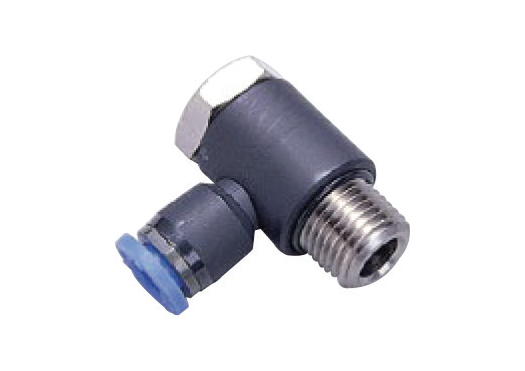

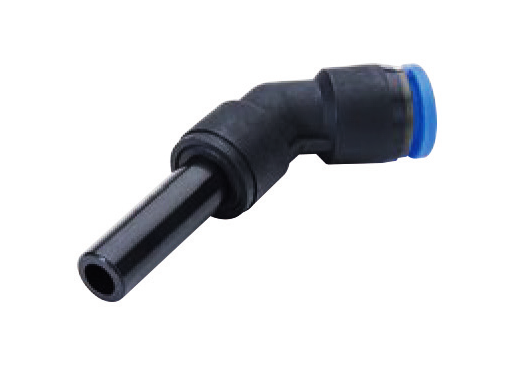

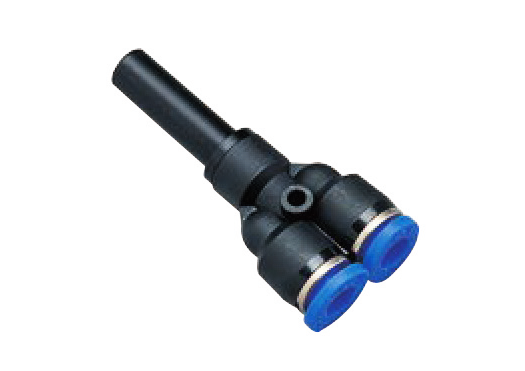

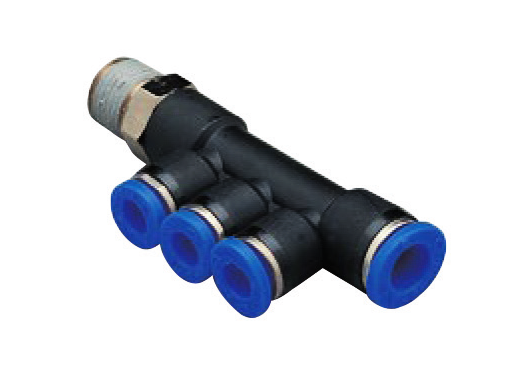

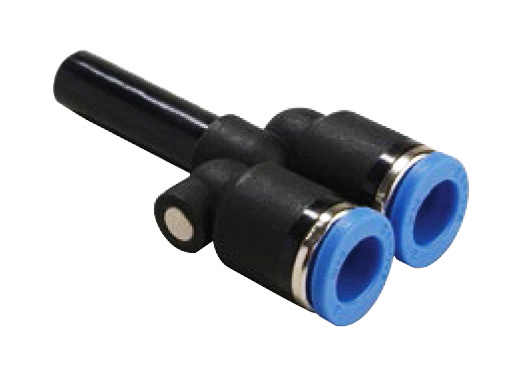

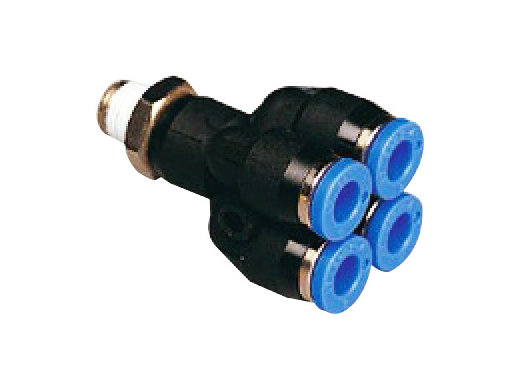

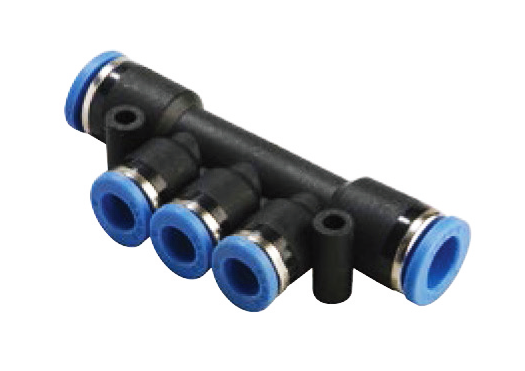

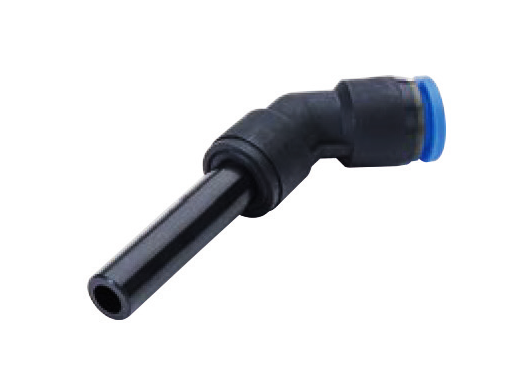

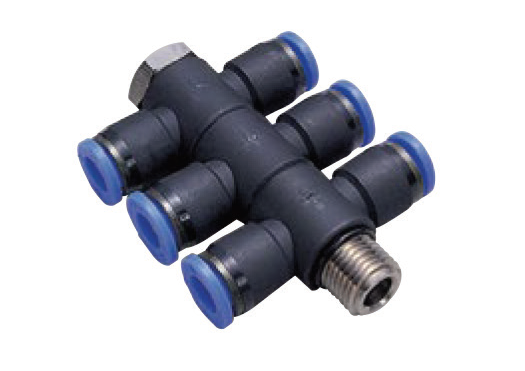

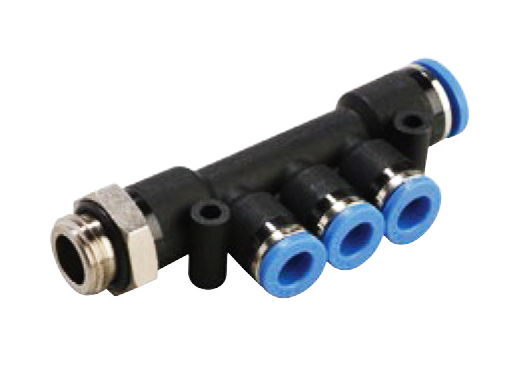

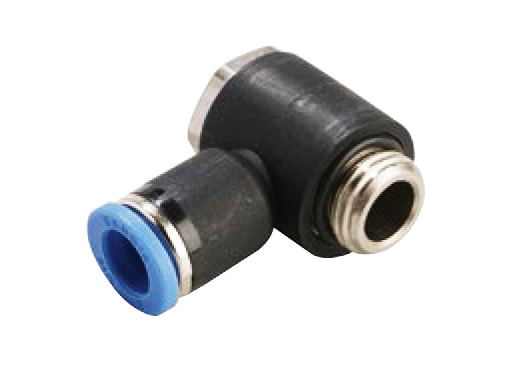

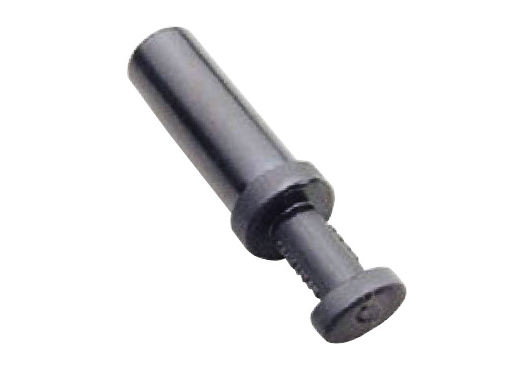

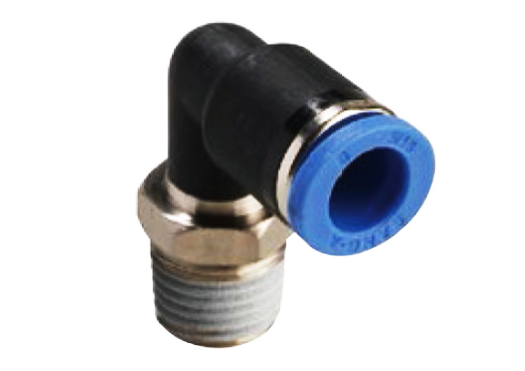

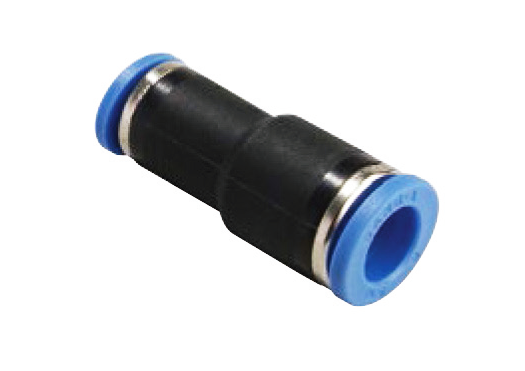

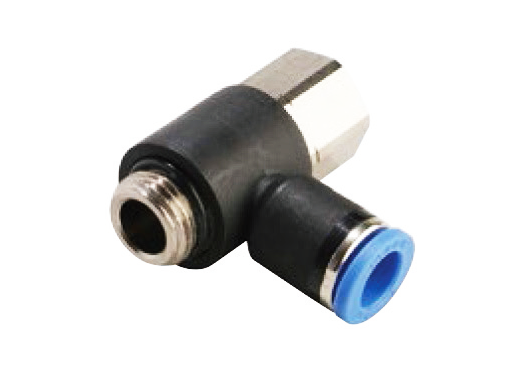

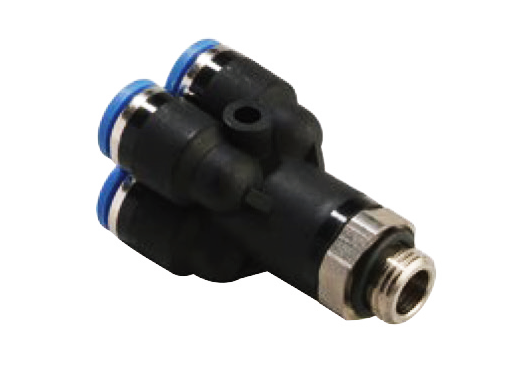

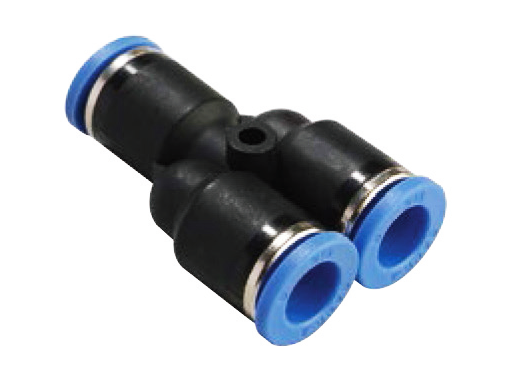

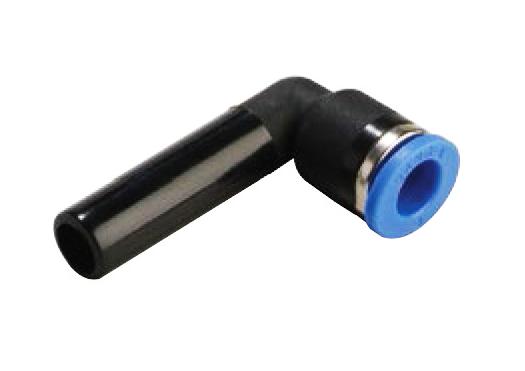

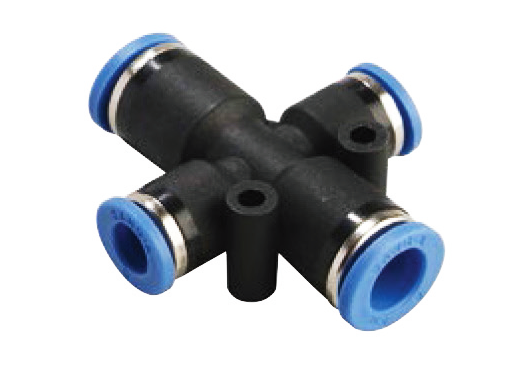

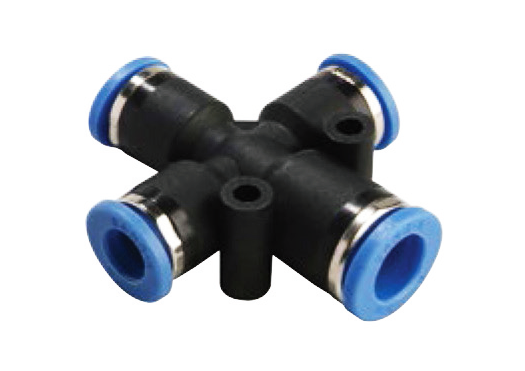

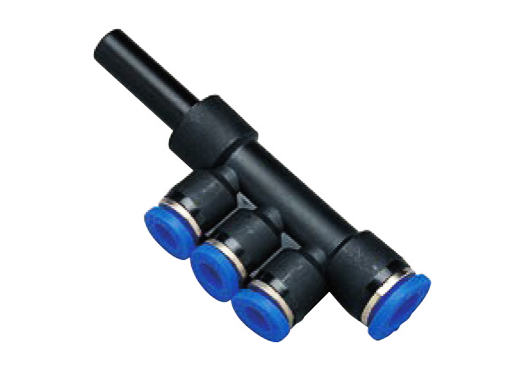

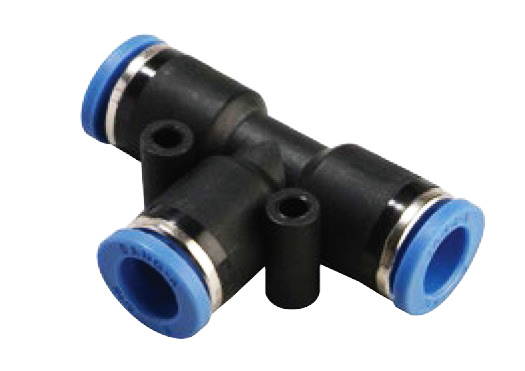

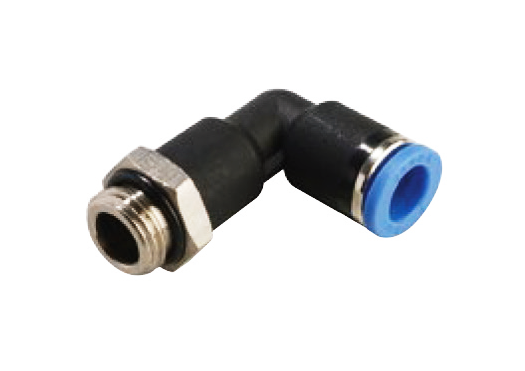

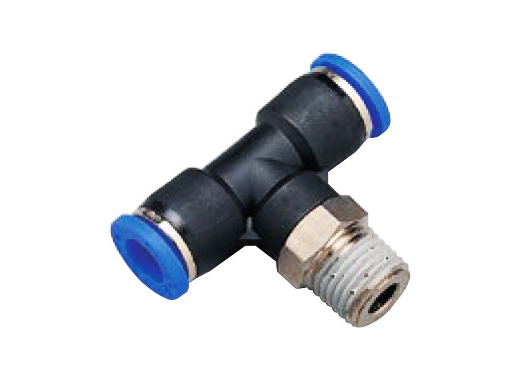

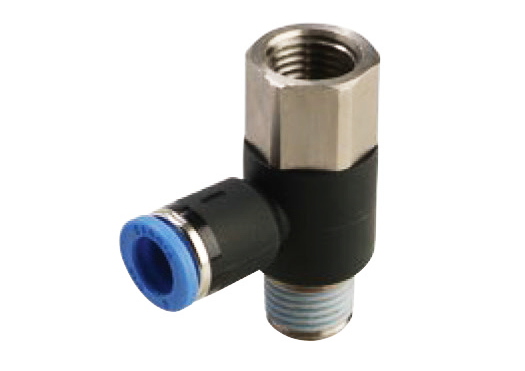

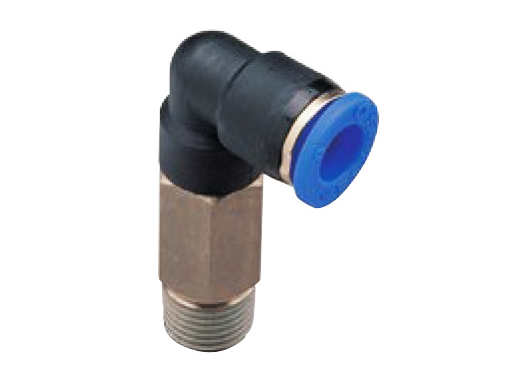

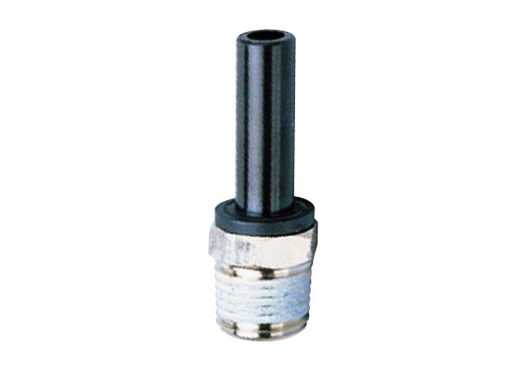

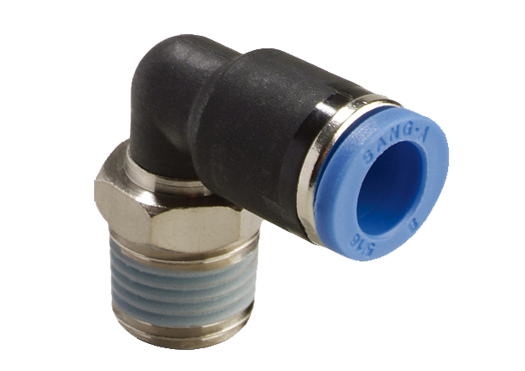

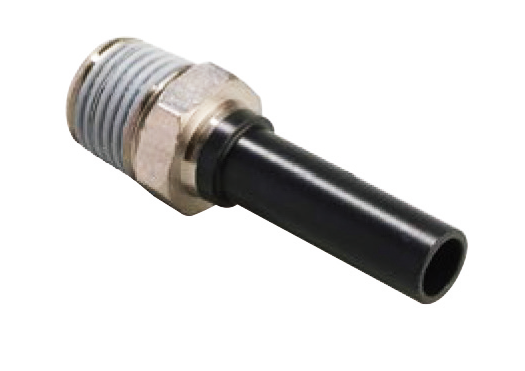

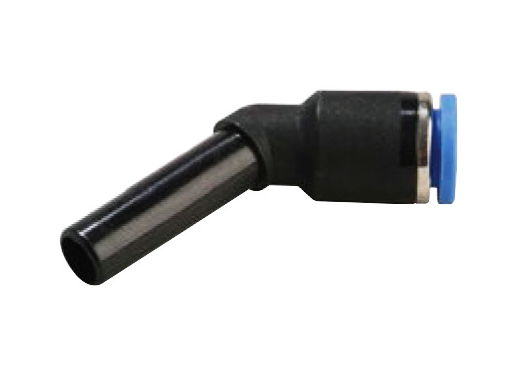

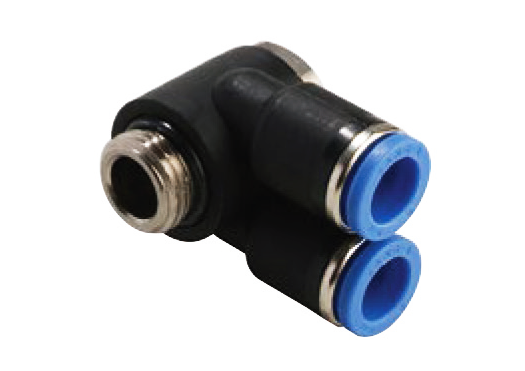

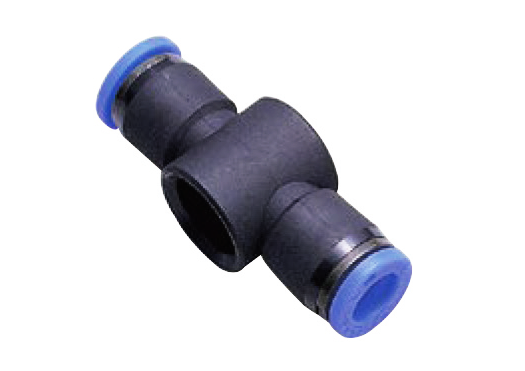

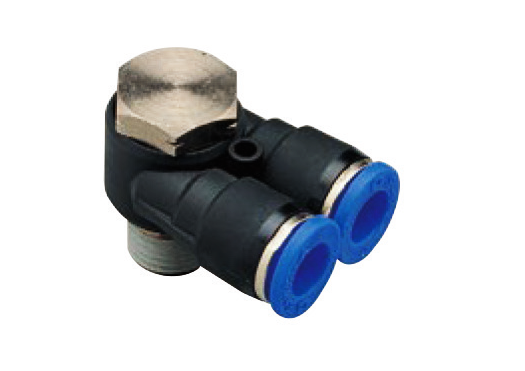

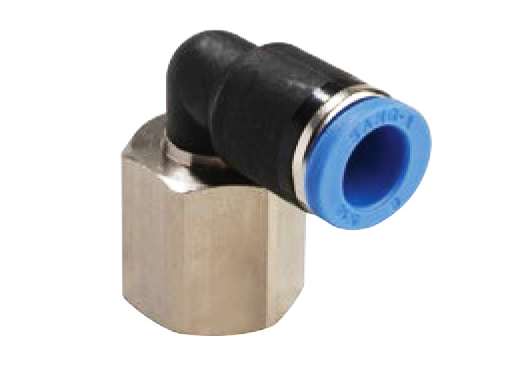

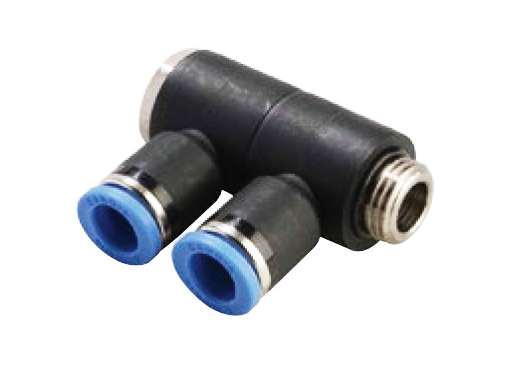

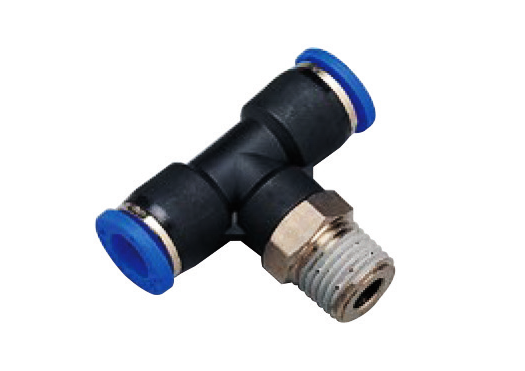

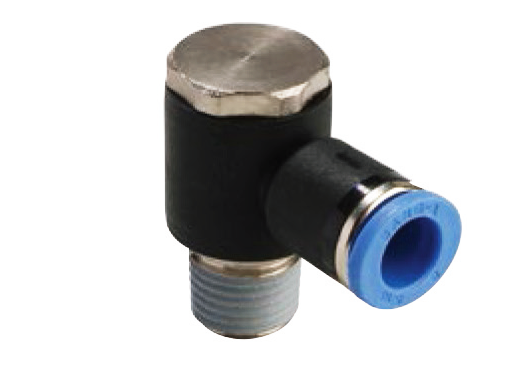

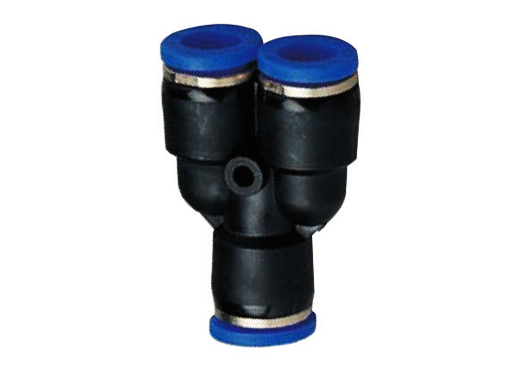

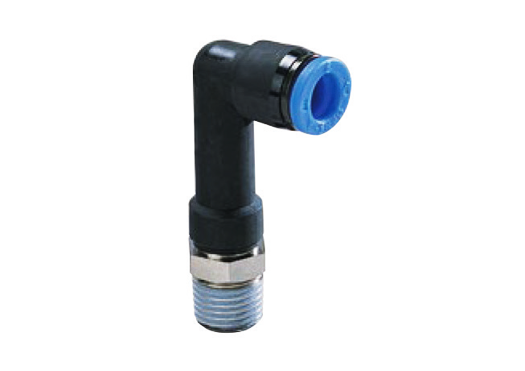

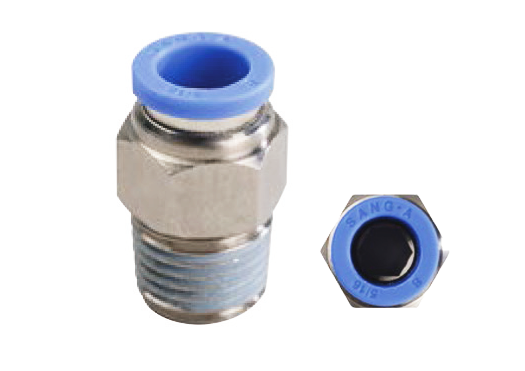

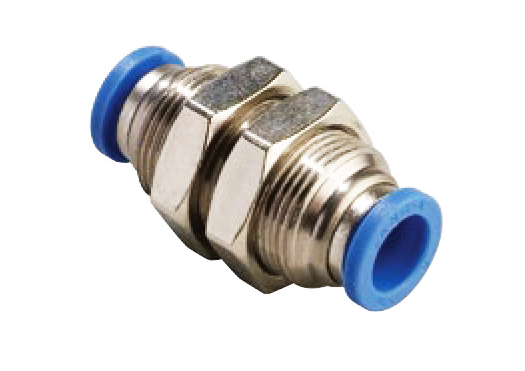

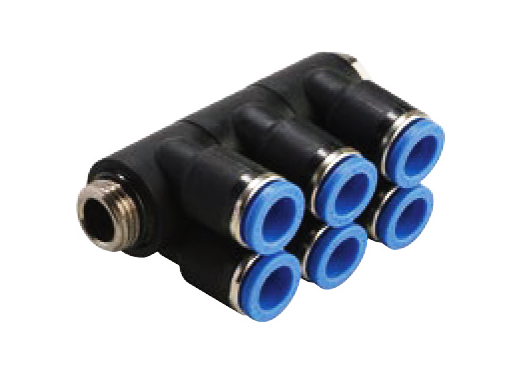

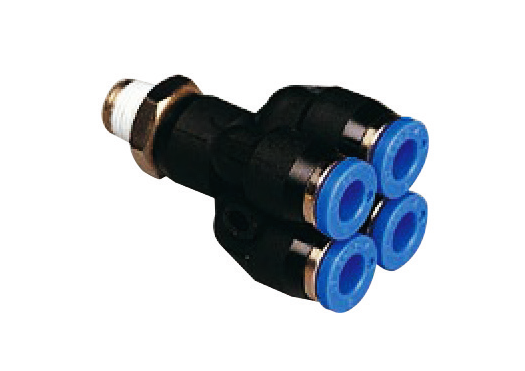

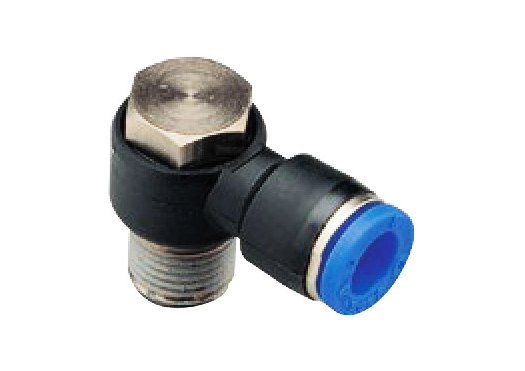

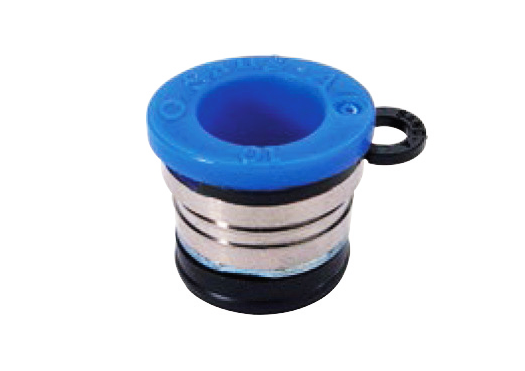

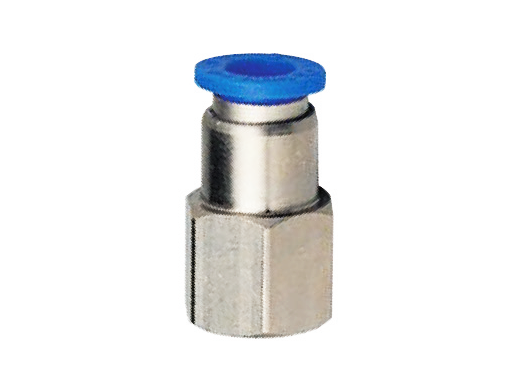

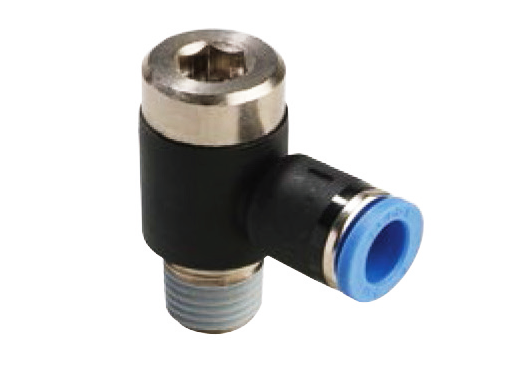

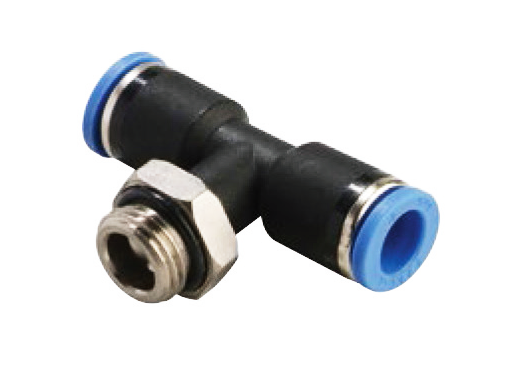

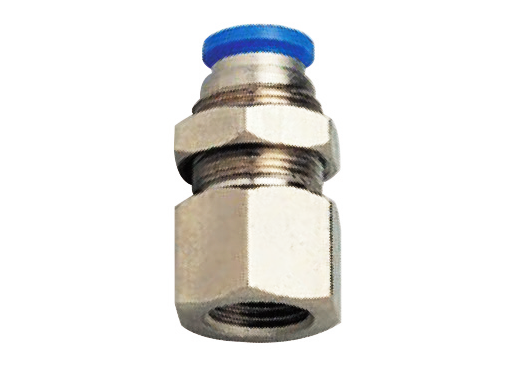

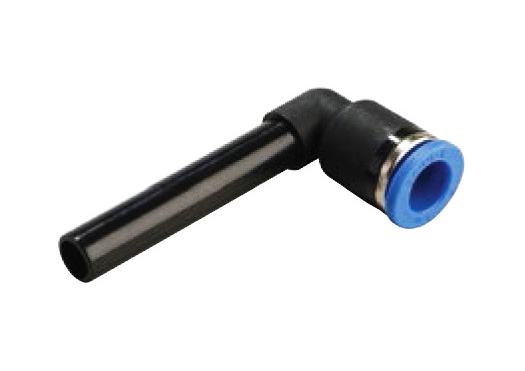

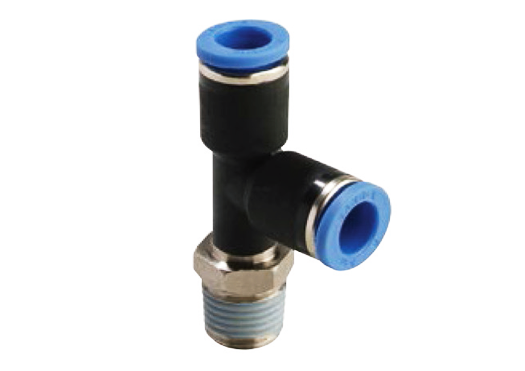

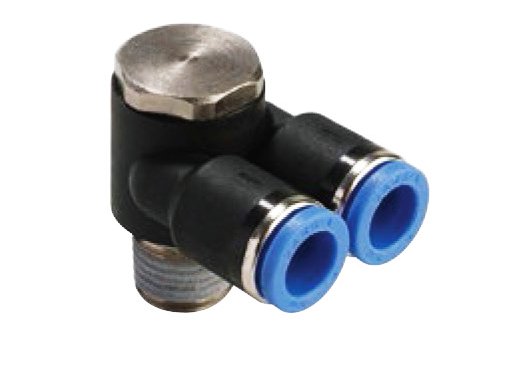

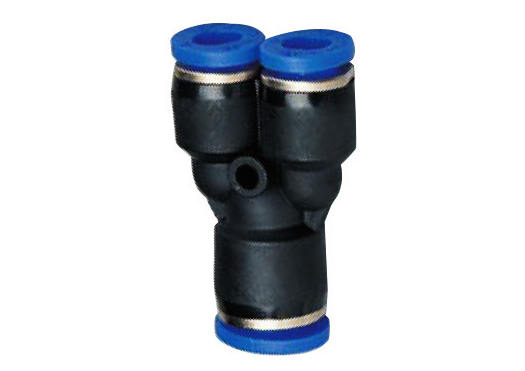

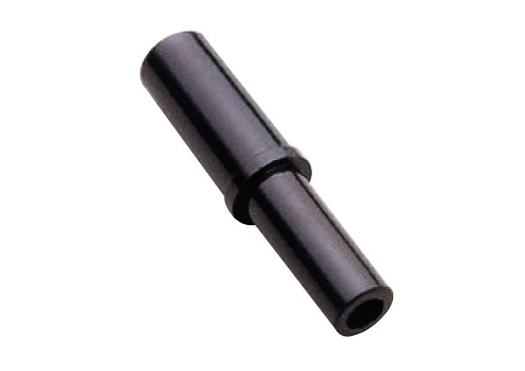

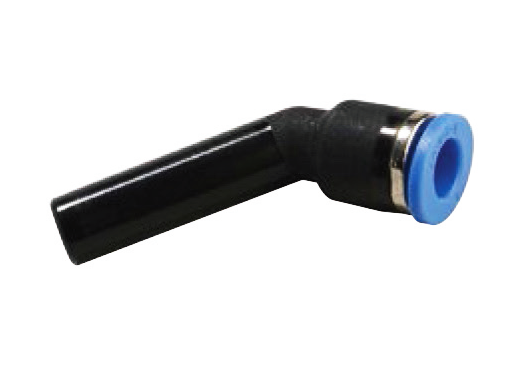

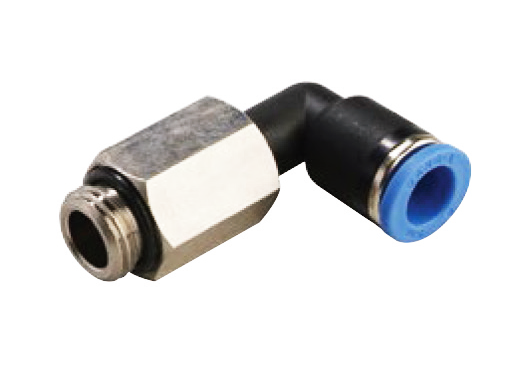

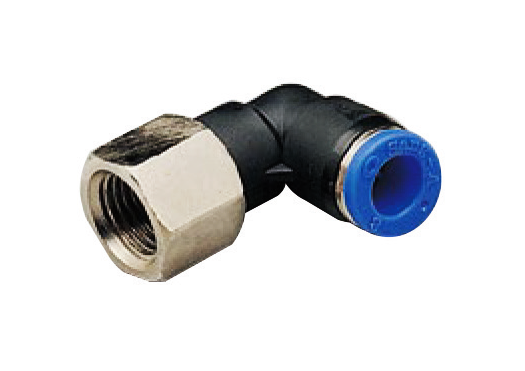

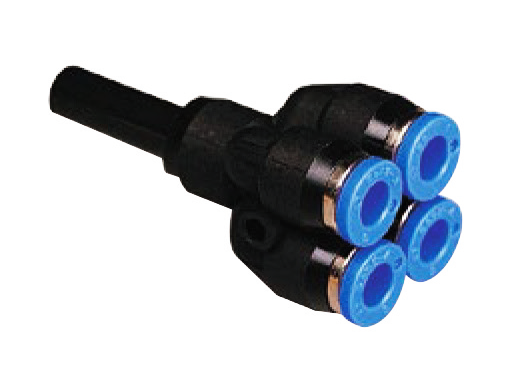

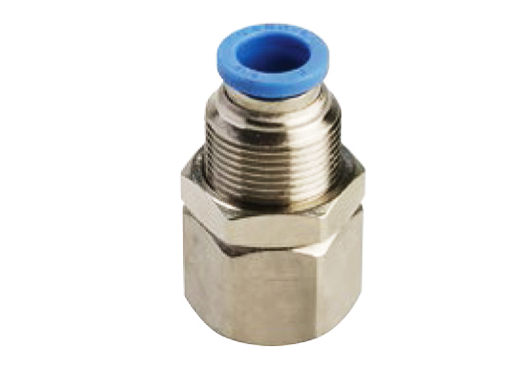

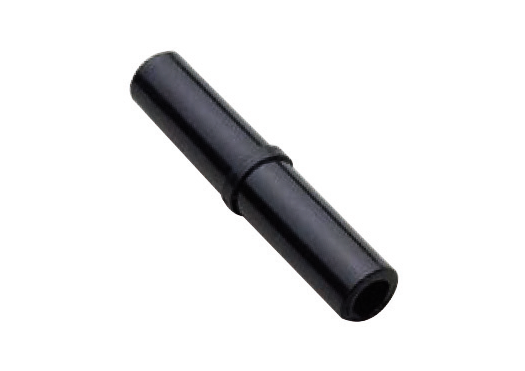

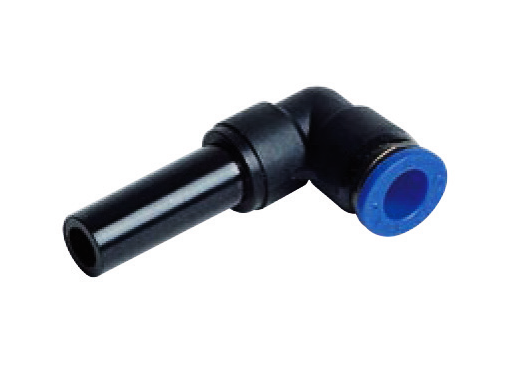

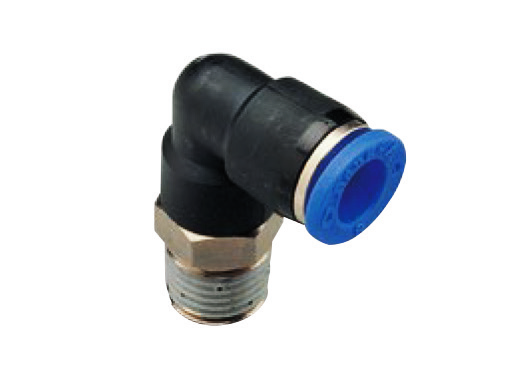

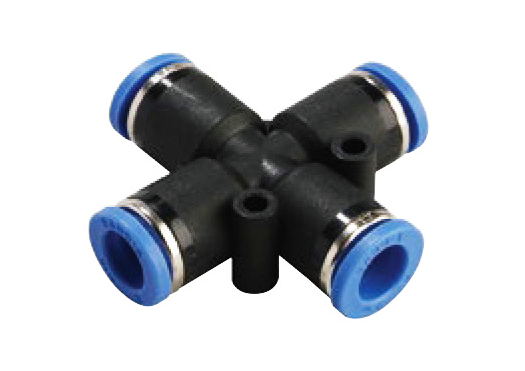

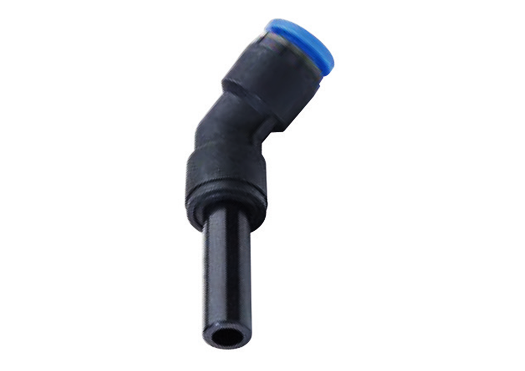

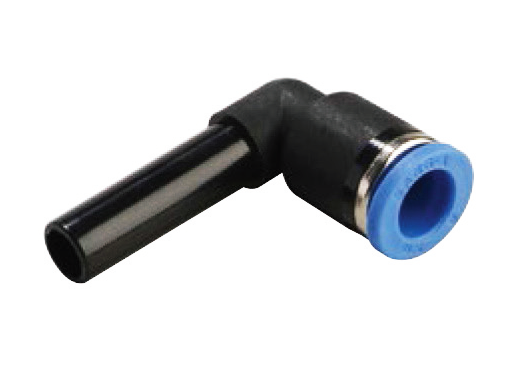

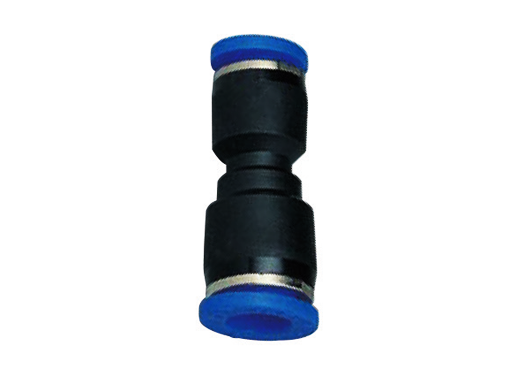

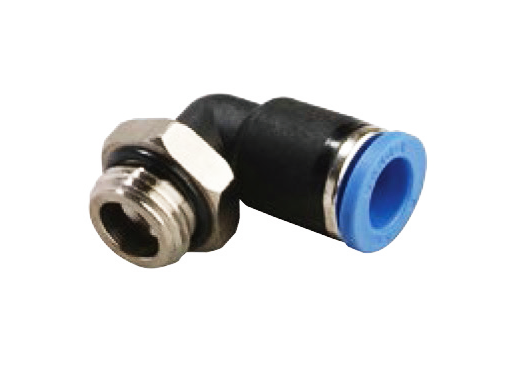

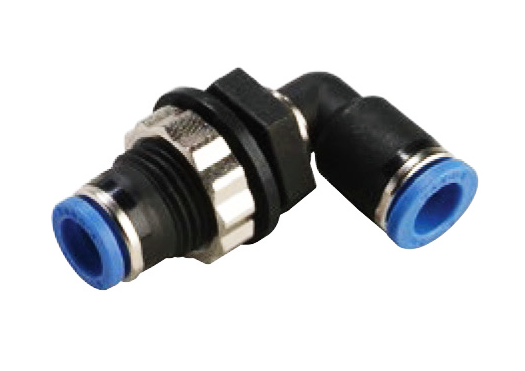

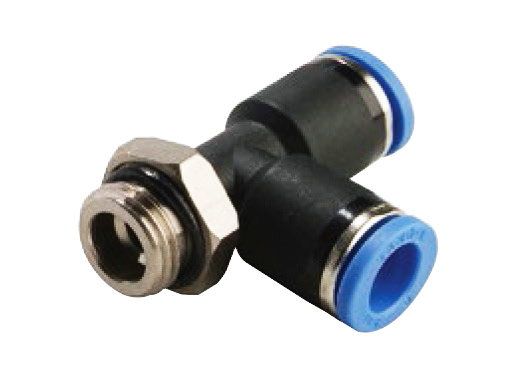

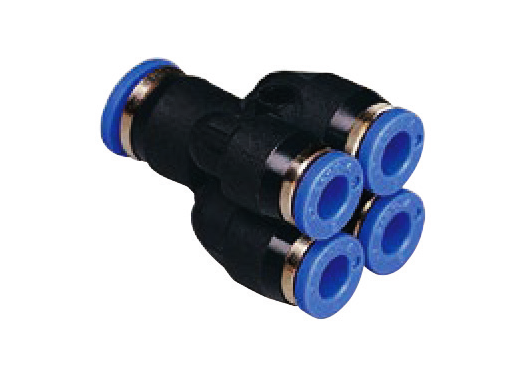

ONE TOUCH FITTINGS
Application
  • One-touch joints used in pneumatic piping.
  • Used for a wide variety of models to meet all needs.

Feature
  • Easy to connect/disconnect tube by one touch.
  • PC type is useful for piping in confined space, given its six-angle wrench processing inside.
  • Elliptical sleeve makes it possible to apply and remove the tub e easily in confined space.

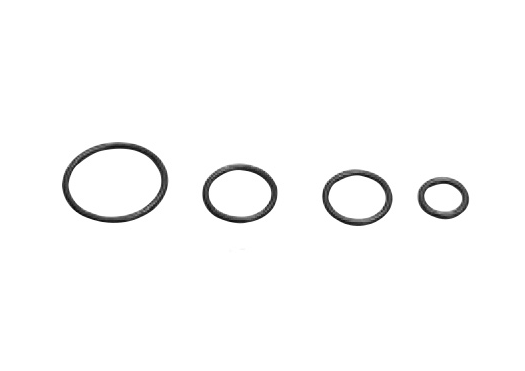

  • Fittings are equipped with a Gasket, O-ring and Teflon-Treatmen t already on the thread.
Specification
Fluid Air(No other gasses of liquids)
Working Pressure Range 0~20Kgf/c㎡(0~1960kPa)
Negative Pressure -29.5inHg -750mmHg(10Torr)
Temperature Range 32~176°F 0~80°C
Applicable Tube Material Polyurethane and Nylon
TAG : #air  #onetouch  #pneumatic  #fitting  #connecter  #connector  #joint  #pipeconnector  #pipe  #nipple  #one-touch  #brassfitting  #plasticfitting
