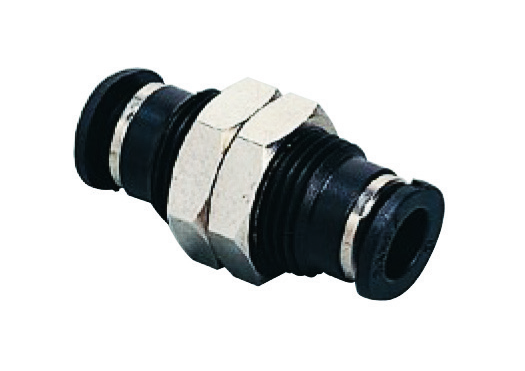

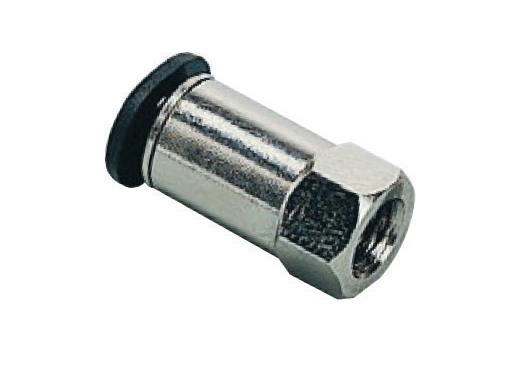

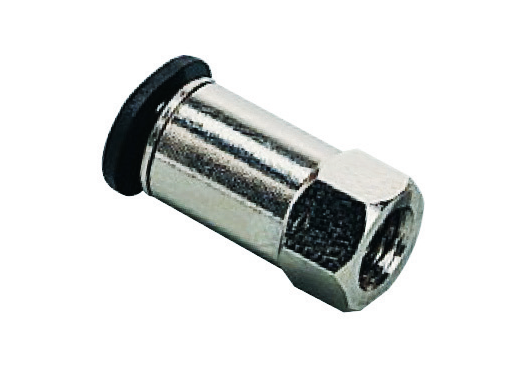

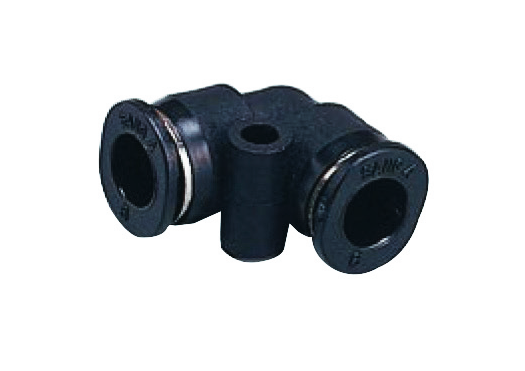

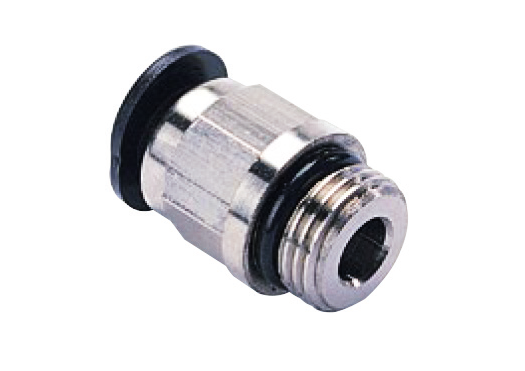

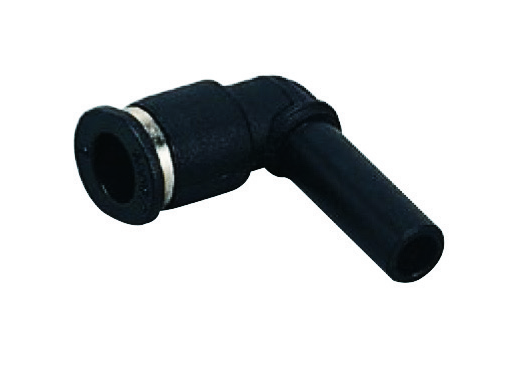

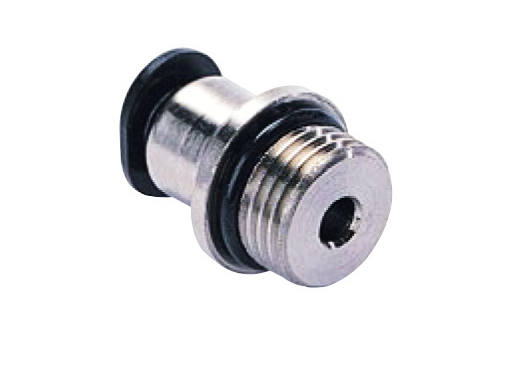

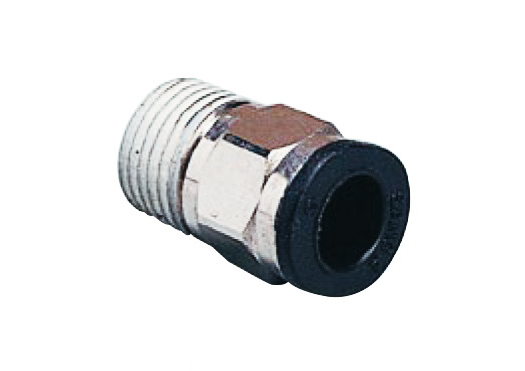

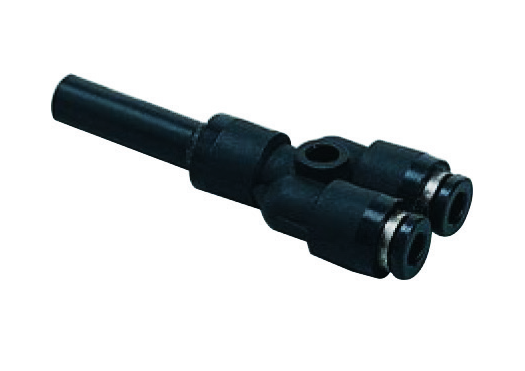

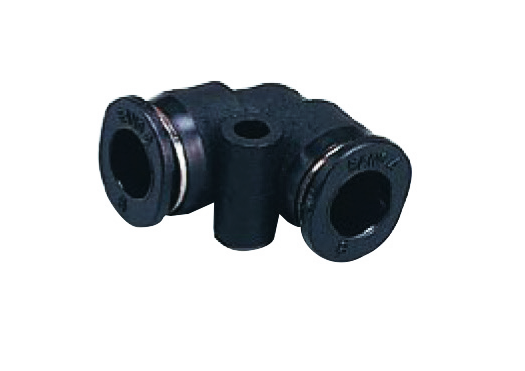

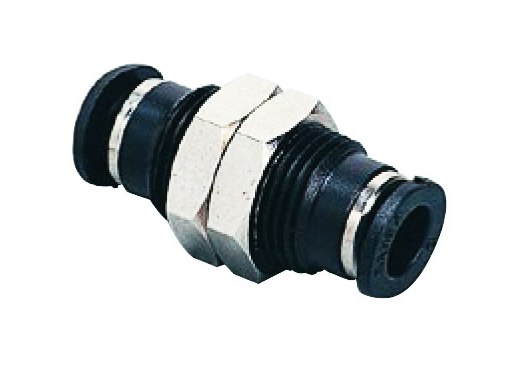

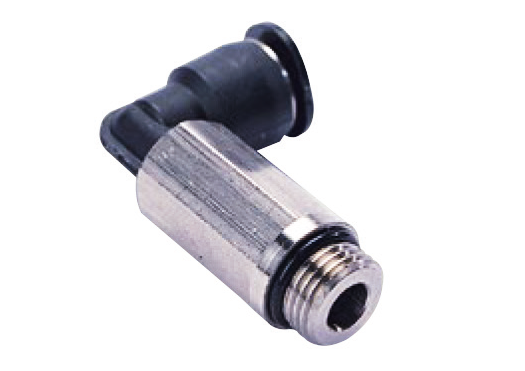

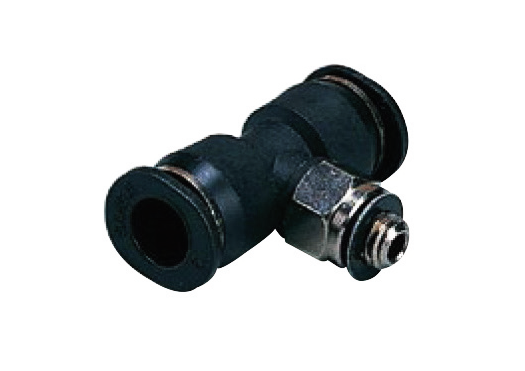

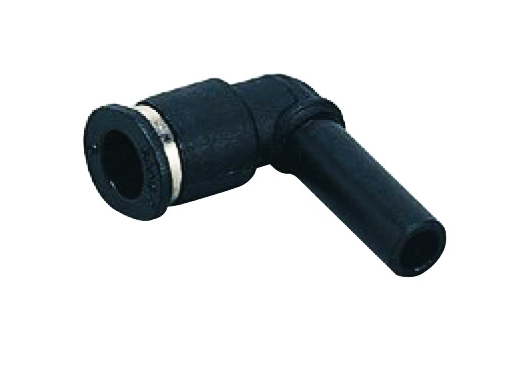

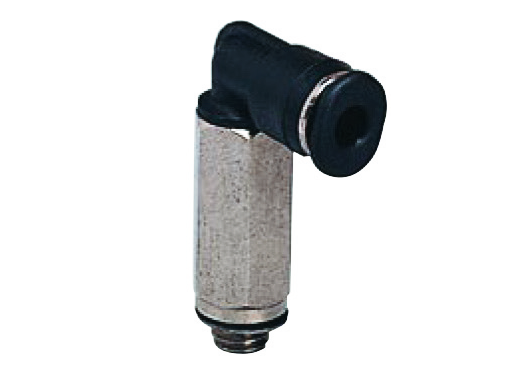

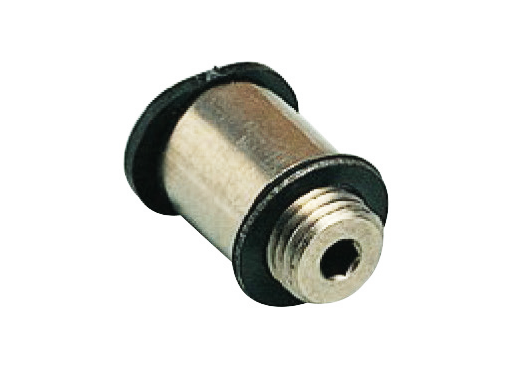

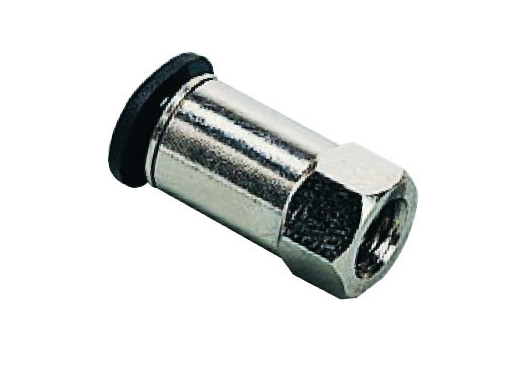

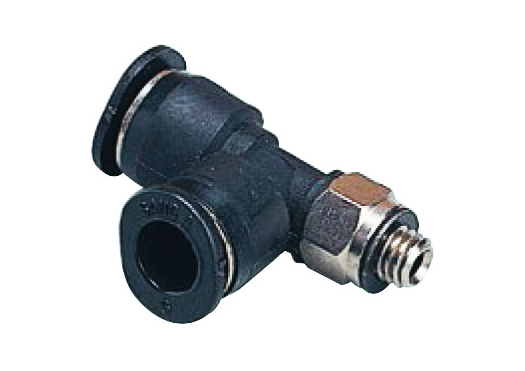

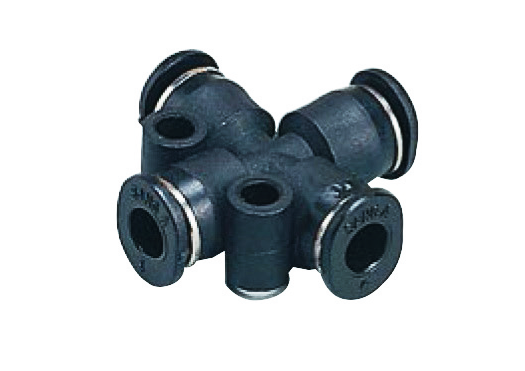

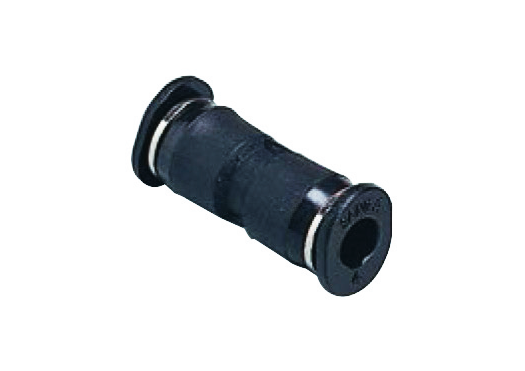

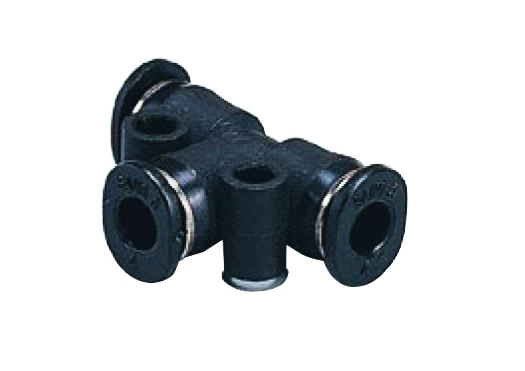

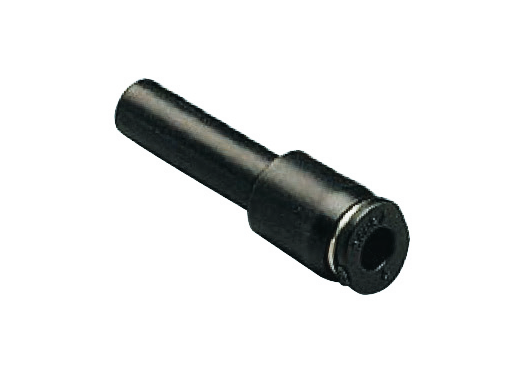

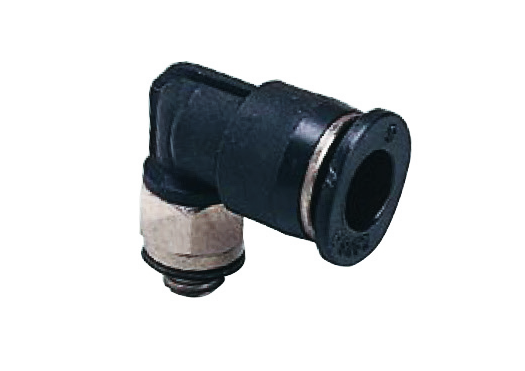

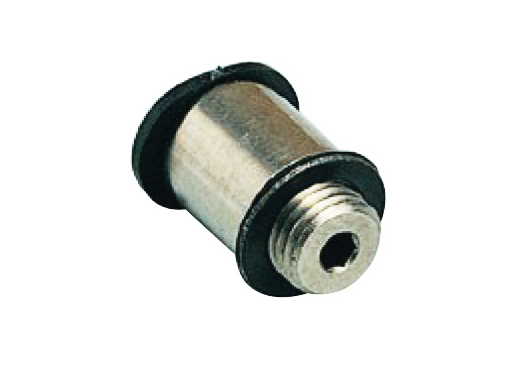

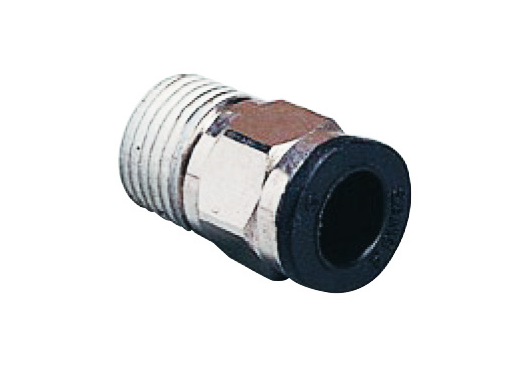

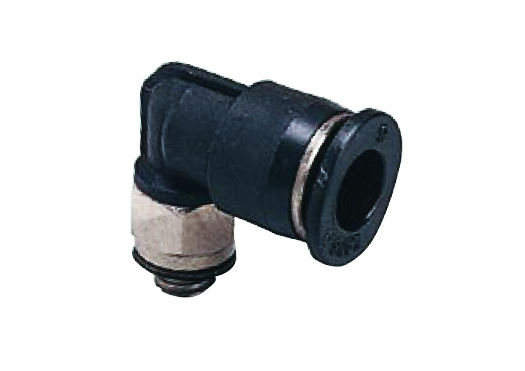

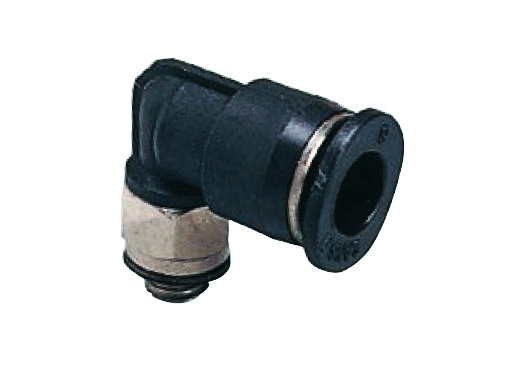

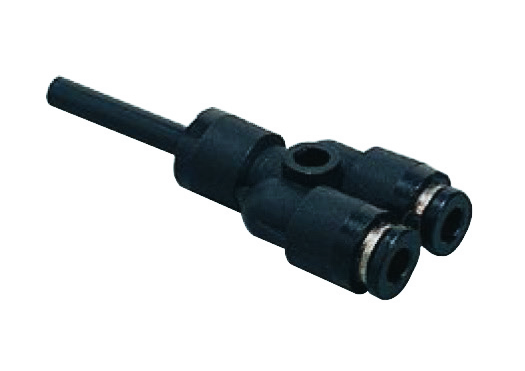

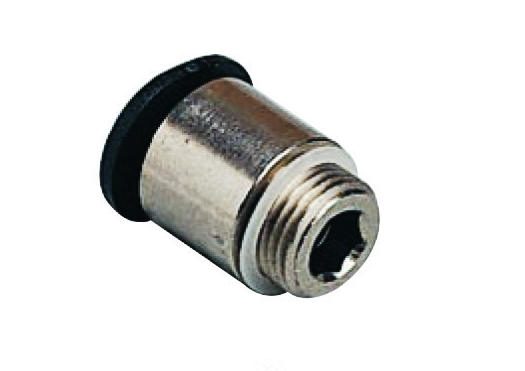

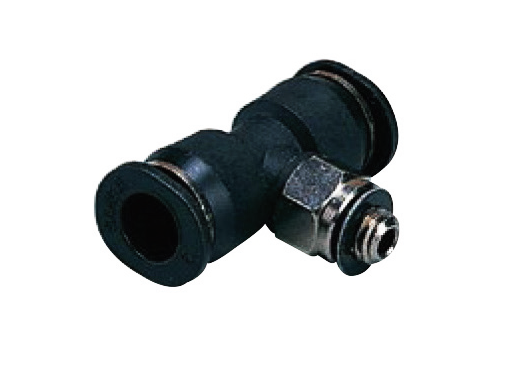

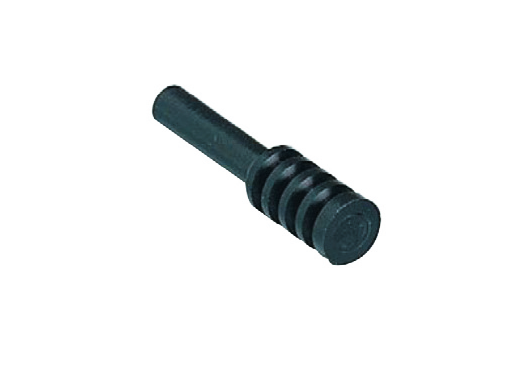

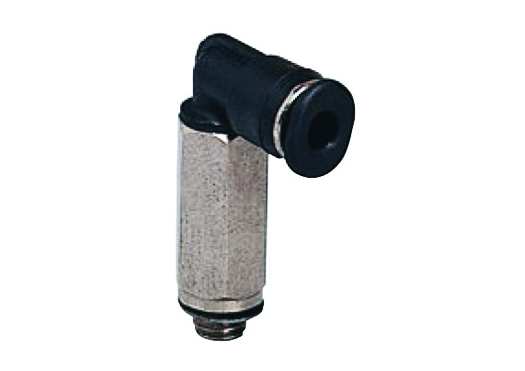

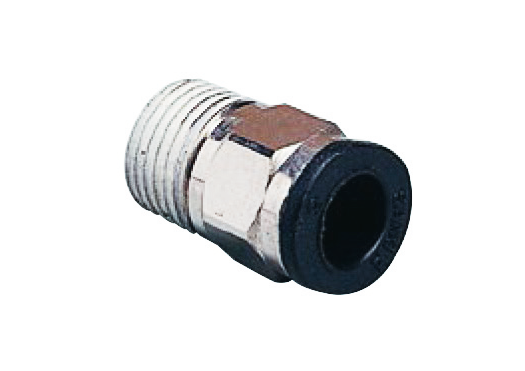

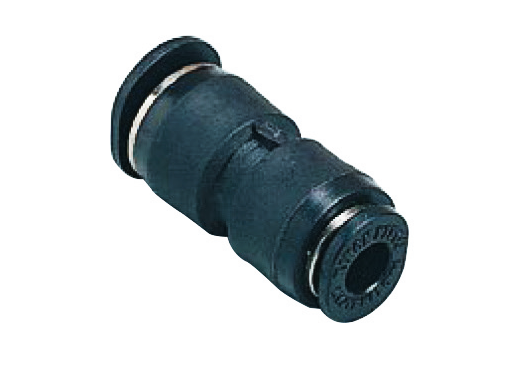

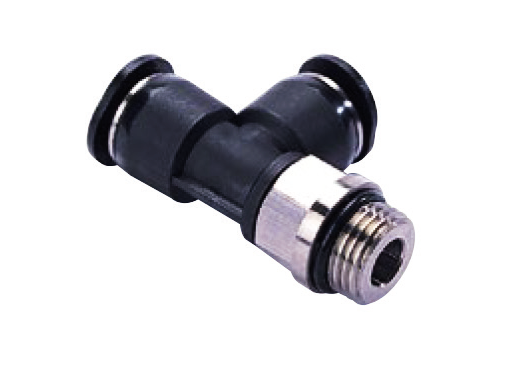

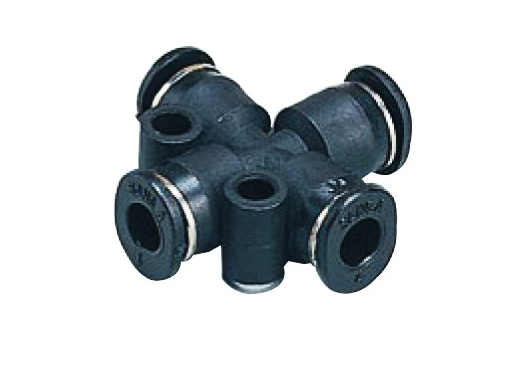

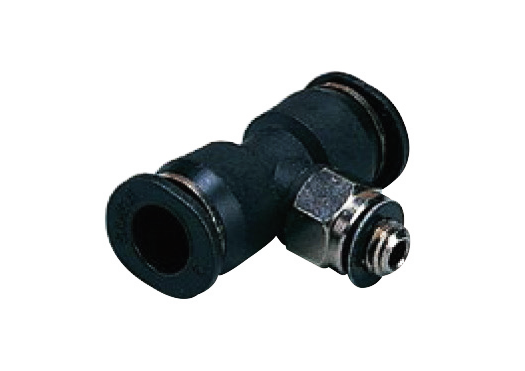

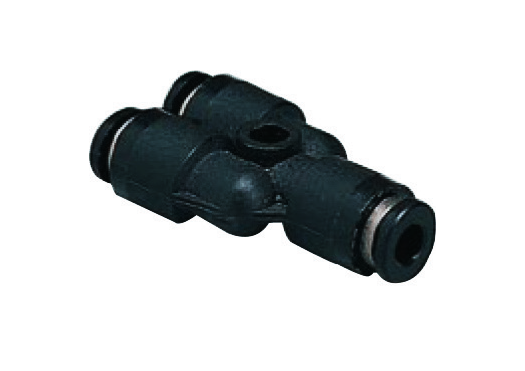

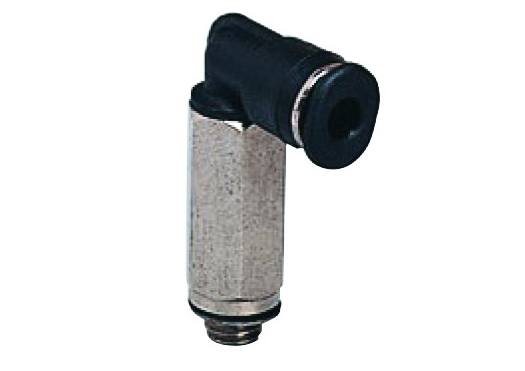

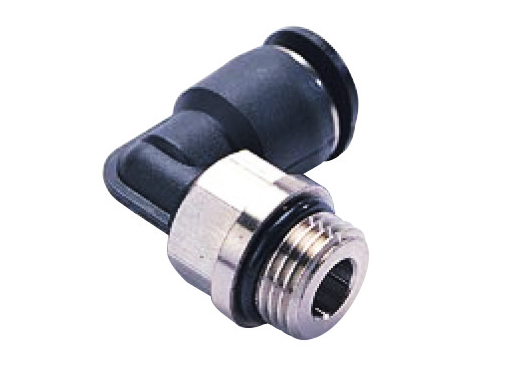

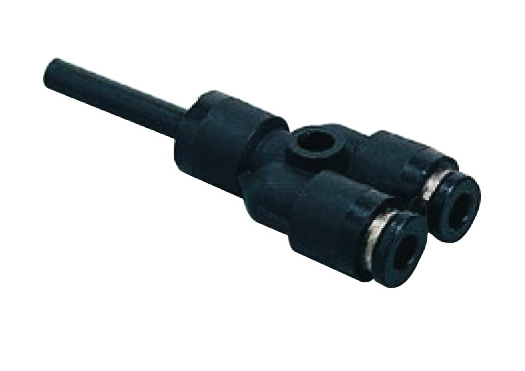

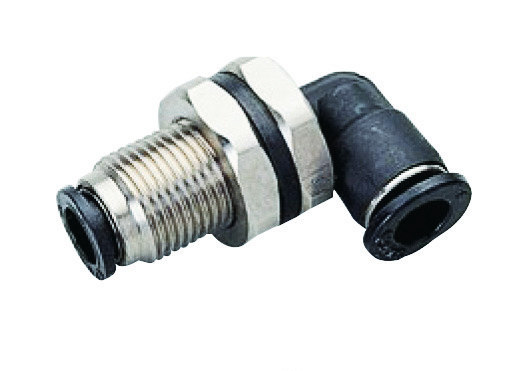

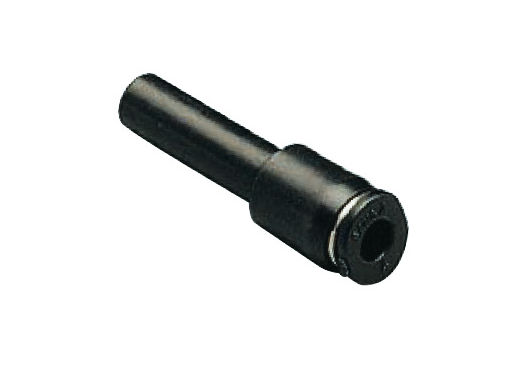

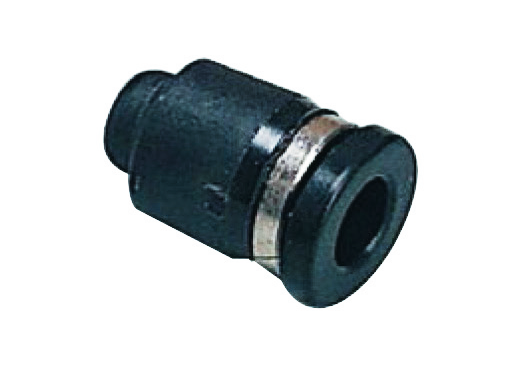

COMPACT ONE-TOUCH FITTINGS
Application
  • Compact type one-touch joints used in small types of pneumatic piping.
  • A wide variety of models are available to meet most your needs .

Feature
  • The world's smallest quick-fitting joints feature 40% smaller v olum
  • ratio and 20% smaller O.D. ratio in comparison to the conventio nal type.
  • The compact type joints, which are nickel plated, are excellent not only in appearance but also in rust resistance.
  • The elliptical sleeve helps easy application or removal of the tube in confined space.
Specification
Fluid Air(No other gases or liquids)
Working Pressure Range 0∼150PSI 0∼9Kgf/㎠(0∼900kPa)
Negative Pressure -29.5inHg -750mmHg(10Torr)
Temperature Range 32∼140℉ 0∼60℃
Applicable Tube Material Polyurethane and Nylon
