HOME FUNCTIONAL FITTINGS STOP FITTING

Tube and thread type selection
If you select the detail type, only the product type of that type is displayed.

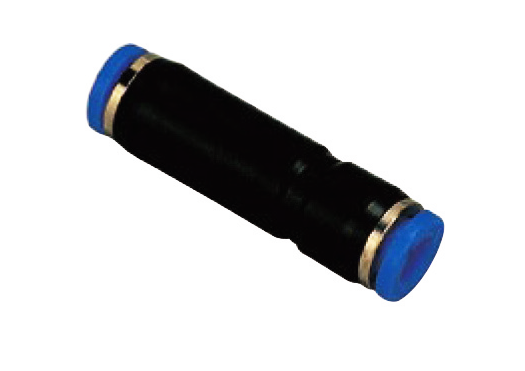

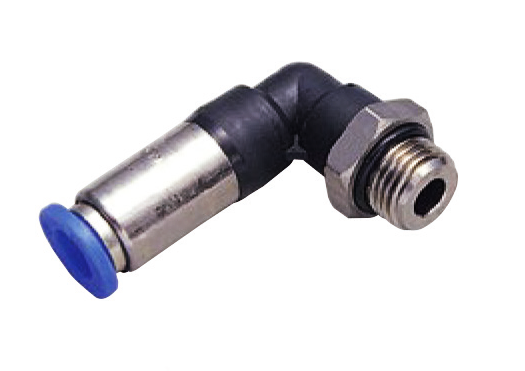

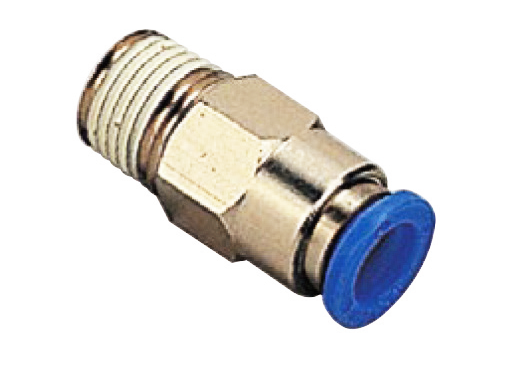

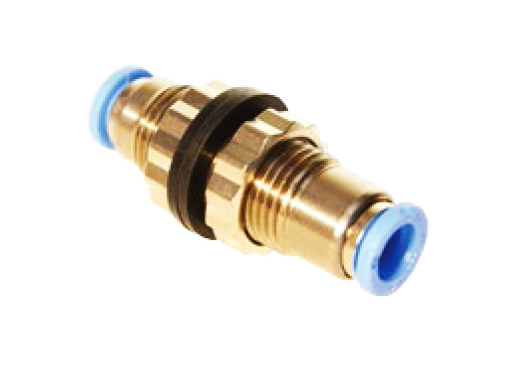

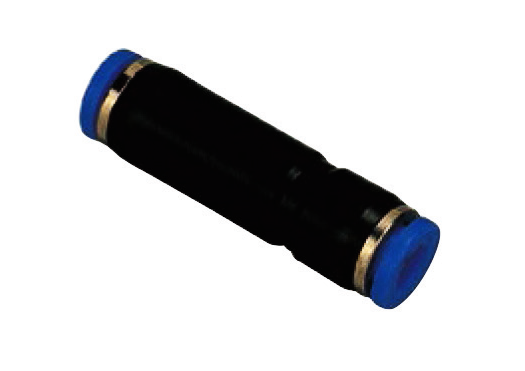

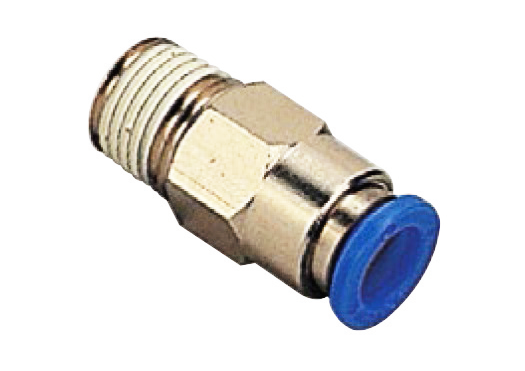

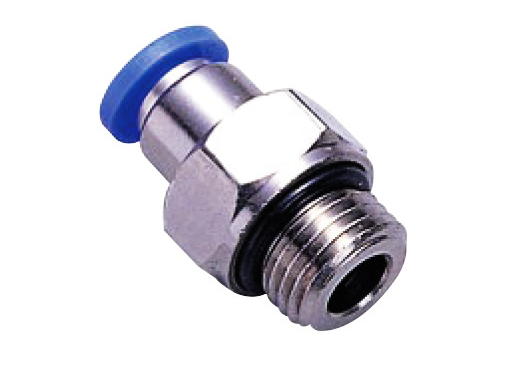

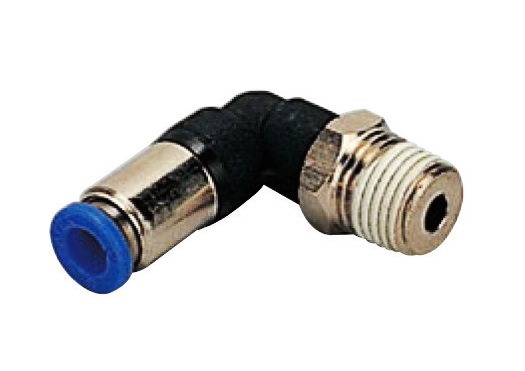

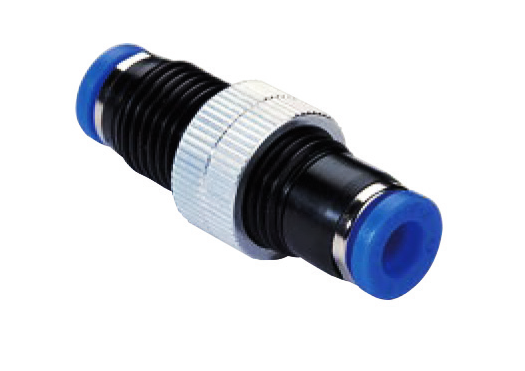

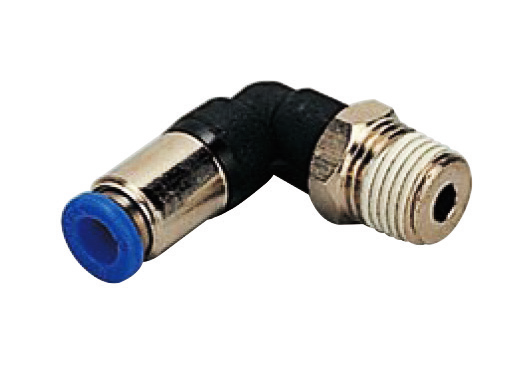

STOP FITTINGS
Application
  • Installed where the pneumatic connections are changed frequent ly.
  • Used at laboratory or for instructing pneumatic connections.

Feature
  • Upon disconnecting the tube, the airflow will stop.
Specification
Fluid Air(No other gases or liquids)
Working Pressure Range 0∼150PSI 0∼9Kgf/㎠(0∼900kPa)
Negative Pressure -29.5inHg -750mmHg(10Torr)
Temperature Range 32∼140℉ 0∼60℃
Applicable Tube Material Polyurethane and Nylon
TAG : #airblcok  #functionalfitting  #valvefitting  #valveembeded  #airvalve  #air  #one-tocuh  #pneumatic  #fitting  #connecter  #connector  #tubeconnector  #pipe  #nipple  #tubeconnecter  #hoseconnector
