Products

Experience the best combination of technology and quality with respect to human beings and technology advantages.

PC

Male Straight
TUBE : Inch / Thread : NPT


HOME FITTINGS ONE-TOUCH FITTING PC

* The image above may differ from the product.
TUBE : Inch / Thread : NPT
(mm)
※ 보라색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

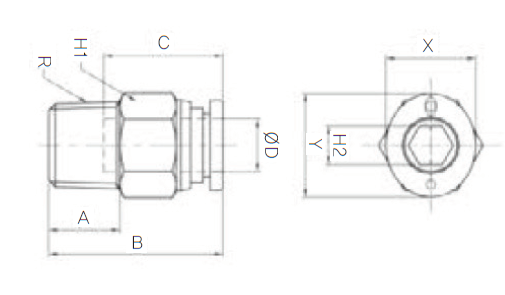

CODE MODEL ØD R A B C H1 H2 X Y Orifice
(ømm)		 W.G(g) Q'ty/
inbox		 Auto CAD MDT(3D) Auto CAD R14(2D)
STEP DWG PDF
401010005472 PC 5/32-U10U 5/32 UNF10*32 4 22 16 7/16 2.4 10 12 2 8.4 100 [로그인] None None
401010005451 PC 5/32-N01U 5/32 NPT1/8 8 22 16 7/16 2.4 10 12 3 9.4 100 [로그인] None None
401010005452 PC 5/32-N02U 5/32 NPT1/4 11 22 16 9/16 2.4 10 12 3 15.5 100 [로그인] None None
401010005453 PC 5/32-N03U 5/32 NPT3/8 12 22 16 11/16 2.4 10 12 3 26.1 50 [로그인] None None
401010005572 PC 3/16-U10U 3/16 UNF10*32 4 23.8 17 7/16 2.4 11 13 2 9 100 [로그인] None None
401010005551 PC 3/16-N01U 3/16 NPT1/8 8 23.3 17 7/16 4 11 13 4 9.3 100 [로그인] None None
401010005552 PC 3/16-N02U 3/16 NPT1/4 11 23.3 17 9/16 4 11 13 4 16.5 100 [로그인] None None
401010005553 PC 3/16-N03U 3/16 NPT3/8 12 23.3 17 11/16 4 11 13 4 27.3 50 [로그인] None None
401010005672 PC 1/4-U10U 1/4 UNF10*32 4 25 17 1/2 2.4 12 14 2 11.8 100 [로그인] None None
401010005651 PC 1/4-N01U 1/4 NPT1/8 8 23.5 17 1/2 4 12 14 4 10.3 100 [로그인] None None
401010005652 PC 1/4-N02U 1/4 NPT1/4 11 25.5 17 9/16 4 12 14 4 17.5 100 [로그인] None None
401010005653 PC 1/4-N03U 1/4 NPT3/8 12 25 17 11/16 4 12 14 4 24.1 50 [로그인] None None
401010005654 PC 1/4-N04U 1/4 NPT1/2 15 25 17 11/16 4 12 14 4 47.8 50 [로그인] None None
401010005851 PC 5/16-N01U 5/16 NPT1/8 8 28.9 18.5 9/16 4.8 14 16 4 16.4 100 [로그인] None None
401010005852 PC 5/16-N02U 5/16 NPT1/4 11 27.4 18.5 9/16 5.6 14 16 6 18.1 100 [로그인] None None
401010005853 PC 5/16-N03U 5/16 NPT3/8 12 25.7 18.5 11/16 5.6 14 16 6 25.8 50 [로그인] None None
401010005854 PC 5/16-N04U 5/16 NPT1/2 15 28.7 18.5 7/8 5.6 14 16 6 49.6 50 [로그인] None None
401010006051 PC 3/8-N01U 3/8 NPT1/8 8 31.5 21 11/16 4.8 17 19 4 25.6 50 [로그인] None None
401010006052 PC 3/8-N02U 3/8 NPT1/4 11 34.5 21 11/16 5.6 17 19 6 29.6 50 [로그인] None None
401010006053 PC 3/8-N03U 3/8 NPT3/8 12 30.5 21 11/16 8 17 19 8 27.7 50 [로그인] None None
401010006054 PC 3/8-N04U 3/8 NPT1/2 15 30 21 7/8 8 17 19 8 48.8 50 [로그인] None None
401010006251 PC 1/2-N01U 1/2 NPT1/8 8 33.9 22.5 7/8 4 21 23 4 37.9 50 [로그인] None None
401010006252 PC 1/2-N02U 1/2 NPT1/4 11 27.4 22.5 7/8 6.4 21 23 6 41.7 50 [로그인] None None
401010006253 PC 1/2-N03U 1/2 NPT3/8 12 32.5 22.5 7/8 7.9 21 23 8 39 50 [로그인] None None
401010006254 PC 1/2-N04U 1/2 NPT1/2 15 34.5 22.5 7/8 7.9 21 23 8 50.6 25 [로그인] None None
※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

TUBE : Inch / Thread : NPT
(mm)
※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

MODEL SPEC
401010005472
PC 5/32-U10U
ØD R A B C H1
5/32 UNF10*32 4 22 16 7/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
2.4 10 12 2 8.4 100
401010005451
PC 5/32-N01U
ØD R A B C H1
5/32 NPT1/8 8 22 16 7/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
2.4 10 12 3 9.4 100
401010005452
PC 5/32-N02U
ØD R A B C H1
5/32 NPT1/4 11 22 16 9/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
2.4 10 12 3 15.5 100
401010005453
PC 5/32-N03U
ØD R A B C H1
5/32 NPT3/8 12 22 16 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
2.4 10 12 3 26.1 50
401010005572
PC 3/16-U10U
ØD R A B C H1
3/16 UNF10*32 4 23.8 17 7/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
2.4 11 13 2 9 100
401010005551
PC 3/16-N01U
ØD R A B C H1
3/16 NPT1/8 8 23.3 17 7/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 11 13 4 9.3 100
401010005552
PC 3/16-N02U
ØD R A B C H1
3/16 NPT1/4 11 23.3 17 9/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 11 13 4 16.5 100
401010005553
PC 3/16-N03U
ØD R A B C H1
3/16 NPT3/8 12 23.3 17 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 11 13 4 27.3 50
401010005672
PC 1/4-U10U
ØD R A B C H1
1/4 UNF10*32 4 25 17 1/2
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
2.4 12 14 2 11.8 100
401010005651
PC 1/4-N01U
ØD R A B C H1
1/4 NPT1/8 8 23.5 17 1/2
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 12 14 4 10.3 100
401010005652
PC 1/4-N02U
ØD R A B C H1
1/4 NPT1/4 11 25.5 17 9/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 12 14 4 17.5 100
401010005653
PC 1/4-N03U
ØD R A B C H1
1/4 NPT3/8 12 25 17 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 12 14 4 24.1 50
401010005654
PC 1/4-N04U
ØD R A B C H1
1/4 NPT1/2 15 25 17 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 12 14 4 47.8 50
401010005851
PC 5/16-N01U
ØD R A B C H1
5/16 NPT1/8 8 28.9 18.5 9/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4.8 14 16 4 16.4 100
401010005852
PC 5/16-N02U
ØD R A B C H1
5/16 NPT1/4 11 27.4 18.5 9/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
5.6 14 16 6 18.1 100
401010005853
PC 5/16-N03U
ØD R A B C H1
5/16 NPT3/8 12 25.7 18.5 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
5.6 14 16 6 25.8 50
401010005854
PC 5/16-N04U
ØD R A B C H1
5/16 NPT1/2 15 28.7 18.5 7/8
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
5.6 14 16 6 49.6 50
401010006051
PC 3/8-N01U
ØD R A B C H1
3/8 NPT1/8 8 31.5 21 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4.8 17 19 4 25.6 50
401010006052
PC 3/8-N02U
ØD R A B C H1
3/8 NPT1/4 11 34.5 21 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
5.6 17 19 6 29.6 50
401010006053
PC 3/8-N03U
ØD R A B C H1
3/8 NPT3/8 12 30.5 21 11/16
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
8 17 19 8 27.7 50
401010006054
PC 3/8-N04U
ØD R A B C H1
3/8 NPT1/2 15 30 21 7/8
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
8 17 19 8 48.8 50
401010006251
PC 1/2-N01U
ØD R A B C H1
1/2 NPT1/8 8 33.9 22.5 7/8
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
4 21 23 4 37.9 50
401010006252
PC 1/2-N02U
ØD R A B C H1
1/2 NPT1/4 11 27.4 22.5 7/8
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
6.4 21 23 6 41.7 50
401010006253
PC 1/2-N03U
ØD R A B C H1
1/2 NPT3/8 12 32.5 22.5 7/8
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
7.9 21 23 8 39 50
401010006254
PC 1/2-N04U
ØD R A B C H1
1/2 NPT1/2 15 34.5 22.5 7/8
H2 X Y Orifice(ømm) W.G(g) Q'ty/inbox
7.9 21 23 8 50.6 25
