PLL

Extended Male Elbow
TUBE : Inch / Thread : NPT


HOME FITTINGS ONE-TOUCH FITTING PLL

* The image above may differ from the product.
TUBE : Inch / Thread : NPT
(mm)
※ 보라색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

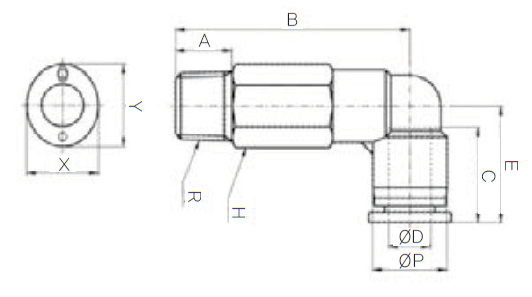

CODE MODEL ØD R ØP A B C E H X Y Orifice
(ømm)		 W.G(g) Q'ty/
inbox		 Auto CAD MDT(3D) Auto CAD R14(2D)
STEP DWG PDF
401100005472 PLL 5/32-U10U 5/32 UNF10*32 10.4 5.5 33.4 16 18.1 7/16 10 12 2 19 100 [로그인] None None
401100005451 PLL 5/32-N01U 5/32 NPT1/8 10.4 8 36 16 18.1 7/16 10 12 2.6 19.9 50 [로그인] None None
401100005452 PLL 5/32-N02U 5/32 NPT1/4 10.4 11 39 16 18.1 9/16 10 12 2.6 31.2 50 [로그인] None None
401100005453 PLL 5/32-N03U 5/32 NPT3/8 10.4 12 40.5 16 18.1 11/16 10 12 2.6 39 50 [로그인] None None
401100005551 PLL 3/16-N01U 3/16 NPT1/8 11 8 36.4 17 19.1 7/16 11 13 2.8 19.9 50 [로그인] None None
401100005552 PLL 3/16-N02U 3/16 NPT1/4 11 11 39.4 17 19.1 9/16 11 13 2.8 32 50 [로그인] None None
401100005553 PLL 3/16-N03U 3/16 NPT3/8 11 12 40.9 17 19.1 11/16 11 13 2.8 38.5 50 [로그인] None None
401100005672 PLL 1/4-U10U 1/4 UNF10*32 12.4 5.5 23.7 17 20.6 1/2 12 14 2 18.9 50 [로그인] None None
401100005651 PLL 1/4-N01U 1/4 NPT1/8 12.4 8 38.9 17 20.6 1/2 12 14 4.6 27.6 50 [로그인] None None
401100005652 PLL 1/4-N02U 1/4 NPT1/4 12.4 11 42.9 17 20.6 9/16 12 14 4.6 35.3 50 [로그인] None None
401100005653 PLL 1/4-N03U 1/4 NPT3/8 12.4 12 45.4 17 20.6 11/16 12 14 4.6 54 50 [로그인] None None
401100005851 PLL 5/16-N01U 5/16 NPT1/8 14.4 8 42.4 18.5 22.8 3/16 14 16 5 35.3 50 [로그인] None None
401100005852 PLL 5/16-N02U 5/16 NPT1/4 14.4 11 46.4 18.5 22.8 7/32 14 16 6 42.1 50 [로그인] None None
401100005853 PLL 5/16-N03U 5/16 NPT3/8 14.4 12 47.9 18.5 22.8 7/32 14 16 6 58.6 25 [로그인] None None
401100006051 PLL 3/8-N01U 3/8 NPT1/8 17.6 8 50.5 21 26.1 11/16 17 19 5 57 25 [로그인] None None
401100006052 PLL 3/8-N02U 3/8 NPT1/4 17.6 11 53.6 21 26.1 11/16 17 19 8 65.7 25 [로그인] None None
401100006053 PLL 3/8-N03U 3/8 NPT3/8 17.6 12 55.1 21 26.1 11/16 17 19 8 74.7 25 [로그인] None None
401100006054 PLL 3/8-N04U 3/8 NPT1/2 17.6 15 58.6 21 26.1 7/8 17 19 8 106.7 20 [로그인] None None
401100006252 PLL 1/2-N02U 1/2 NPT1/4 21.2 11 59 22.5 29.3 7/8 21 23 8 109.3 25 [로그인] None None
401100006253 PLL 1/2-N03U 1/2 NPT3/8 21.2 12 60.5 22.5 29.3 7/8 21 23 9 114.3 20 [로그인] None None
401100006254 PLL 1/2-N04U 1/2 NPT1/2 21.2 15 64 22.5 29.3 7/8 21 23 9 120.2 20 [로그인] None None
※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

TUBE : Inch / Thread : NPT
(mm)
※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

MODEL SPEC
401100005472
PLL 5/32-U10U
ØD R ØP A B C E
5/32 UNF10*32 10.4 5.5 33.4 16 18.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/16 10 12 2 19 100
401100005451
PLL 5/32-N01U
ØD R ØP A B C E
5/32 NPT1/8 10.4 8 36 16 18.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/16 10 12 2.6 19.9 50
401100005452
PLL 5/32-N02U
ØD R ØP A B C E
5/32 NPT1/4 10.4 11 39 16 18.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
9/16 10 12 2.6 31.2 50
401100005453
PLL 5/32-N03U
ØD R ØP A B C E
5/32 NPT3/8 10.4 12 40.5 16 18.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
11/16 10 12 2.6 39 50
401100005551
PLL 3/16-N01U
ØD R ØP A B C E
3/16 NPT1/8 11 8 36.4 17 19.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/16 11 13 2.8 19.9 50
401100005552
PLL 3/16-N02U
ØD R ØP A B C E
3/16 NPT1/4 11 11 39.4 17 19.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
9/16 11 13 2.8 32 50
401100005553
PLL 3/16-N03U
ØD R ØP A B C E
3/16 NPT3/8 11 12 40.9 17 19.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
11/16 11 13 2.8 38.5 50
401100005672
PLL 1/4-U10U
ØD R ØP A B C E
1/4 UNF10*32 12.4 5.5 23.7 17 20.6
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
1/2 12 14 2 18.9 50
401100005651
PLL 1/4-N01U
ØD R ØP A B C E
1/4 NPT1/8 12.4 8 38.9 17 20.6
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
1/2 12 14 4.6 27.6 50
401100005652
PLL 1/4-N02U
ØD R ØP A B C E
1/4 NPT1/4 12.4 11 42.9 17 20.6
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
9/16 12 14 4.6 35.3 50
401100005653
PLL 1/4-N03U
ØD R ØP A B C E
1/4 NPT3/8 12.4 12 45.4 17 20.6
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
11/16 12 14 4.6 54 50
401100005851
PLL 5/16-N01U
ØD R ØP A B C E
5/16 NPT1/8 14.4 8 42.4 18.5 22.8
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
3/16 14 16 5 35.3 50
401100005852
PLL 5/16-N02U
ØD R ØP A B C E
5/16 NPT1/4 14.4 11 46.4 18.5 22.8
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/32 14 16 6 42.1 50
401100005853
PLL 5/16-N03U
ØD R ØP A B C E
5/16 NPT3/8 14.4 12 47.9 18.5 22.8
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/32 14 16 6 58.6 25
401100006051
PLL 3/8-N01U
ØD R ØP A B C E
3/8 NPT1/8 17.6 8 50.5 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
11/16 17 19 5 57 25
401100006052
PLL 3/8-N02U
ØD R ØP A B C E
3/8 NPT1/4 17.6 11 53.6 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
11/16 17 19 8 65.7 25
401100006053
PLL 3/8-N03U
ØD R ØP A B C E
3/8 NPT3/8 17.6 12 55.1 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
11/16 17 19 8 74.7 25
401100006054
PLL 3/8-N04U
ØD R ØP A B C E
3/8 NPT1/2 17.6 15 58.6 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/8 17 19 8 106.7 20
401100006252
PLL 1/2-N02U
ØD R ØP A B C E
1/2 NPT1/4 21.2 11 59 22.5 29.3
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/8 21 23 8 109.3 25
401100006253
PLL 1/2-N03U
ØD R ØP A B C E
1/2 NPT3/8 21.2 12 60.5 22.5 29.3
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/8 21 23 9 114.3 20
401100006254
PLL 1/2-N04U
ØD R ØP A B C E
1/2 NPT1/2 21.2 15 64 22.5 29.3
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
7/8 21 23 9 120.2 20
