PLL

Extended Male Elbow
TUBE : Inch / Thread : R(PT)


HOME FITTINGS ONE-TOUCH FITTING PLL

* The image above may differ from the product.
TUBE : Inch / Thread : R(PT)
(mm)
※ 보라색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

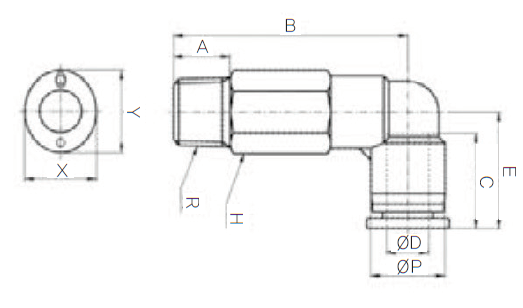

CODE MODEL ØD R ØP A B C E H X Y Orifice
(ømm)		 W.G(g) Q'ty/
inbox		 Auto CAD MDT(3D) Auto CAD R14(2D)
STEP DWG PDF
401100005411 PLL 5/32-R01 5/32 R1/8 10.4 8 36 16 18.7 10 10 12 2.6 19.9 50 None None None
401100005412 PLL 5/32-R02 5/32 R1/4 10.4 11 39 16 18.7 14 10 12 2.6 31.2 50 None None None
401100005413 PLL 5/32-R03 5/32 R3/8 10.4 12 40.5 16 18.7 17 10 12 2.6 39.8 50 None None None
401100005511 PLL 3/16-R01 3/16 R1/8 11 8 36.4 17 18.1 10 11 13 2.8 19.9 50 None None None
401100005512 PLL 3/16-R02 3/16 R1/4 11 11 39.4 17 20.1 14 11 13 2.8 32 50 None None None
401100005513 PLL 3/16-R03 3/16 R3/8 11 12 40.9 17 22.5 17 11 13 2.8 38.8 50 None None None
401100005611 PLL 1/4-R01 1/4 R1/8 12.4 8 37.8 17 21.1 12 12 14 4.6 27.6 50 None None None
401100005612 PLL 1/4-R02 1/4 R1/4 12.4 11 41.8 17 21.1 14 12 14 4.6 35.3 50 None None None
401100005613 PLL 1/4-R03 1/4 R3/8 12.4 12 44.3 17 21.1 17 12 14 4.6 54 50 None None None
401100005811 PLL 5/16-R01 5/16 R1/8 14.4 8 42.4 18.5 22.8 14 14 16 5 27.5 50 None None None
401100005812 PLL 5/16-R02 5/16 R1/4 14.4 11 46.4 18.5 22.8 14 14 16 6 35.3 50 None None None
401100005813 PLL 5/16-R03 5/16 R3/8 14.4 12 47.9 18.5 22.8 17 14 16 6 53.9 25 None None None
401100005814 PLL 5/16-R04 5/16 R1/2 14.4 15 52.4 18.5 22.8 21 14 16 6 60 25 None None None
401100006011 PLL 3/8-R01 3/8 R1/8 17.6 8 50.6 21 26.1 17 17 19 5 57 25 None None None
401100006012 PLL 3/8-R02 3/8 R1/4 17.6 11 53.6 21 26.1 17 17 19 8 65.7 25 None None None
401100006013 PLL 3/8-R03 3/8 R3/8 17.6 12 55.1 21 26.1 17 17 19 8 74.7 25 None None None
401100006014 PLL 3/8-R04 3/8 R1/2 17.6 15 58.6 21 26.1 21 17 19 8 106.7 20 None None None
401100006211 PLL 1/2-R01 1/2 R1/8 21 8 56 22.5 24.3 21 21 23 5 100 25 None None None
401100006212 PLL 1/2-R02 1/2 R1/4 21 11 59 22.5 24.3 21 21 23 8 109.2 25 None None None
401100006213 PLL 1/2-R03 1/2 R3/8 21 12 60.5 22.5 24.3 21 21 23 9 114.3 20 None None None
401100006214 PLL 1/2-R04 1/2 R1/2 21 15 64 22.5 24.3 21 21 23 9 120.2 20 None None None
※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

TUBE : Inch / Thread : R(PT)
(mm)
※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

MODEL SPEC
401100005411
PLL 5/32-R01
ØD R ØP A B C E
5/32 R1/8 10.4 8 36 16 18.7
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
10 10 12 2.6 19.9 50
401100005412
PLL 5/32-R02
ØD R ØP A B C E
5/32 R1/4 10.4 11 39 16 18.7
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
14 10 12 2.6 31.2 50
401100005413
PLL 5/32-R03
ØD R ØP A B C E
5/32 R3/8 10.4 12 40.5 16 18.7
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
17 10 12 2.6 39.8 50
401100005511
PLL 3/16-R01
ØD R ØP A B C E
3/16 R1/8 11 8 36.4 17 18.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
10 11 13 2.8 19.9 50
401100005512
PLL 3/16-R02
ØD R ØP A B C E
3/16 R1/4 11 11 39.4 17 20.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
14 11 13 2.8 32 50
401100005513
PLL 3/16-R03
ØD R ØP A B C E
3/16 R3/8 11 12 40.9 17 22.5
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
17 11 13 2.8 38.8 50
401100005611
PLL 1/4-R01
ØD R ØP A B C E
1/4 R1/8 12.4 8 37.8 17 21.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
12 12 14 4.6 27.6 50
401100005612
PLL 1/4-R02
ØD R ØP A B C E
1/4 R1/4 12.4 11 41.8 17 21.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
14 12 14 4.6 35.3 50
401100005613
PLL 1/4-R03
ØD R ØP A B C E
1/4 R3/8 12.4 12 44.3 17 21.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
17 12 14 4.6 54 50
401100005811
PLL 5/16-R01
ØD R ØP A B C E
5/16 R1/8 14.4 8 42.4 18.5 22.8
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
14 14 16 5 27.5 50
401100005812
PLL 5/16-R02
ØD R ØP A B C E
5/16 R1/4 14.4 11 46.4 18.5 22.8
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
14 14 16 6 35.3 50
401100005813
PLL 5/16-R03
ØD R ØP A B C E
5/16 R3/8 14.4 12 47.9 18.5 22.8
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
17 14 16 6 53.9 25
401100005814
PLL 5/16-R04
ØD R ØP A B C E
5/16 R1/2 14.4 15 52.4 18.5 22.8
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
21 14 16 6 60 25
401100006011
PLL 3/8-R01
ØD R ØP A B C E
3/8 R1/8 17.6 8 50.6 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
17 17 19 5 57 25
401100006012
PLL 3/8-R02
ØD R ØP A B C E
3/8 R1/4 17.6 11 53.6 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
17 17 19 8 65.7 25
401100006013
PLL 3/8-R03
ØD R ØP A B C E
3/8 R3/8 17.6 12 55.1 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
17 17 19 8 74.7 25
401100006014
PLL 3/8-R04
ØD R ØP A B C E
3/8 R1/2 17.6 15 58.6 21 26.1
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
21 17 19 8 106.7 20
401100006211
PLL 1/2-R01
ØD R ØP A B C E
1/2 R1/8 21 8 56 22.5 24.3
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
21 21 23 5 100 25
401100006212
PLL 1/2-R02
ØD R ØP A B C E
1/2 R1/4 21 11 59 22.5 24.3
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
21 21 23 8 109.2 25
401100006213
PLL 1/2-R03
ØD R ØP A B C E
1/2 R3/8 21 12 60.5 22.5 24.3
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
21 21 23 9 114.3 20
401100006214
PLL 1/2-R04
ØD R ØP A B C E
1/2 R1/2 21 15 64 22.5 24.3
H X Y Orifice(ømm) W.G(g) Q'ty/inbox
21 21 23 9 120.2 20
