FITTINGS > WATER FITTING

WC

BSPT

Inch Size

HOME FITTINGS WATER FITTING WC

* The image above may differ from the product.

Inch Size

(mm)

※ 보라색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

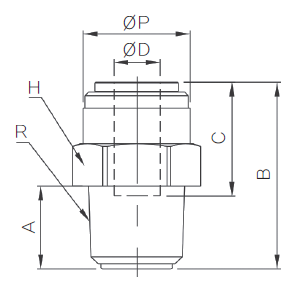

CODE	MODEL	ØD	ØP	A	B	C	H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox	Auto CAD MDT(3D)	Auto CAD R14(2D)
CODE	MODEL	ØD	ØP	A	B	C	H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox	STEP	DWG	PDF
86015411	WC 5/32-01	5/32	13	8.5	23.15	13.45	14.29(9/16)	1/8	2.97	100	[로그인]	[로그인]	[로그인]
86015412	WC 5/32-02	5/32	13	11.7	25.85	13.45	15.88(5/8)	1/4	4.27	100	[로그인]	[로그인]	[로그인]
86015511	WC 3/16-01	3/16	13.5	8.5	23.2	14.4	15.88(5/8)	1/8	3.29	100	[로그인]	[로그인]	[로그인]
86015512	WC 3/16-02	3/16	13.5	11.7	25.9	14.4	15.88(5/8)	1/4	4.24	100	[로그인]	[로그인]	[로그인]
86015611	WC 1/4-01	1/4	15	8.5	25.2	16.1	15.88(5/8)	1/8	3.56	100	[로그인]	[로그인]	[로그인]
86015612	WC 1/4-02	1/4	15	11.7	26.4	16.1	15.88(5/8)	1/4	4.08	100	[로그인]	[로그인]	[로그인]
86015613	WC 1/4-03	1/4	15	12.7	25.9	16.1	19.05(3/4)	3/8	5.43	100	[로그인]	[로그인]	[로그인]
86015614	WC 1/4-04	1/4	15	15.9	29.1	16.1	22.23(7/8)	1/2	8.6	50	[로그인]	[로그인]	[로그인]
86015811	WC 5/16-01	5/16	17.7	8.5	27.3	17.3	19.05(3/4)	1/8	4.78	100	[로그인]	[로그인]	[로그인]
86015812	WC 5/16-02	5/16	17.7	11.7	25.5	17.3	19.05(3/4)	1/4	4.64	100	[로그인]	[로그인]	[로그인]
86015813	WC 5/16-03	5/16	17.7	12.7	26.5	17.3	19.05(3/4)	3/8	5.53	50	[로그인]	[로그인]	[로그인]
86016011	WC 3/8-01	3/8	20	10.5	29.5	18.6	20.64(13/16)	1/8	6.849	50	[로그인]	[로그인]	[로그인]
86016012	WC 3/8-02	3/8	20	11.7	31.2	18.6	20.64(13/16)	1/4	7.1	50	[로그인]	[로그인]	[로그인]
86016013	WC 3/8-03	3/8	20	12.7	29.2	18.6	20.64(13/16)	3/8	7.455	50	[로그인]	[로그인]	[로그인]
86016011	WC 3/8-04	3/8	20	15.9	32.4	18.6	22.23(7/8)	1/2	10.733	50	[로그인]	[로그인]	[로그인]
86016213	WC 1/2-03	1/2	23	12.7	35.7	22.5	24.61(31/32)	3/8	11.257	50	[로그인]	[로그인]	[로그인]
86016214	WC 1/2-04	1/2	23	15.9	34.9	22.5	24.61(31/32)	1/2	12.2	50	[로그인]	[로그인]	[로그인]

※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

Inch Size

(mm)

※ 파랑색으로 표기된 제품의 수치는 최신 발간행 이후 수치가 변경 된 항목이니 확인해 주시기 바랍니다.

MODEL

SPEC

86015411
WC 5/32-01

ØD	ØP	A	B	C
5/32	13	8.5	23.15	13.45

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
14.29(9/16)	1/8	2.97	100

86015412
WC 5/32-02

ØD	ØP	A	B	C
5/32	13	11.7	25.85	13.45

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
15.88(5/8)	1/4	4.27	100

86015511
WC 3/16-01

ØD	ØP	A	B	C
3/16	13.5	8.5	23.2	14.4

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
15.88(5/8)	1/8	3.29	100

86015512
WC 3/16-02

ØD	ØP	A	B	C
3/16	13.5	11.7	25.9	14.4

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
15.88(5/8)	1/4	4.24	100

86015611
WC 1/4-01

ØD	ØP	A	B	C
1/4	15	8.5	25.2	16.1

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
15.88(5/8)	1/8	3.56	100

86015612
WC 1/4-02

ØD	ØP	A	B	C
1/4	15	11.7	26.4	16.1

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
15.88(5/8)	1/4	4.08	100

86015613
WC 1/4-03

ØD	ØP	A	B	C
1/4	15	12.7	25.9	16.1

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
19.05(3/4)	3/8	5.43	100

86015614
WC 1/4-04

ØD	ØP	A	B	C
1/4	15	15.9	29.1	16.1

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
22.23(7/8)	1/2	8.6	50

86015811
WC 5/16-01

ØD	ØP	A	B	C
5/16	17.7	8.5	27.3	17.3

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
19.05(3/4)	1/8	4.78	100

86015812
WC 5/16-02

ØD	ØP	A	B	C
5/16	17.7	11.7	25.5	17.3

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
19.05(3/4)	1/4	4.64	100

86015813
WC 5/16-03

ØD	ØP	A	B	C
5/16	17.7	12.7	26.5	17.3

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
19.05(3/4)	3/8	5.53	50

86016011
WC 3/8-01

ØD	ØP	A	B	C
3/8	20	10.5	29.5	18.6

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
20.64(13/16)	1/8	6.849	50

86016012
WC 3/8-02

ØD	ØP	A	B	C
3/8	20	11.7	31.2	18.6

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
20.64(13/16)	1/4	7.1	50

86016013
WC 3/8-03

ØD	ØP	A	B	C
3/8	20	12.7	29.2	18.6

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
20.64(13/16)	3/8	7.455	50

86016011
WC 3/8-04

ØD	ØP	A	B	C
3/8	20	15.9	32.4	18.6

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
22.23(7/8)	1/2	10.733	50

86016213
WC 1/2-03

ØD	ØP	A	B	C
1/2	23	12.7	35.7	22.5

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
24.61(31/32)	3/8	11.257	50

86016214
WC 1/2-04

ØD	ØP	A	B	C
1/2	23	15.9	34.9	22.5

H(Inch)	R(BSPT,R)	W.G(g)	Q´ty/inbox
24.61(31/32)	1/2	12.2	50
