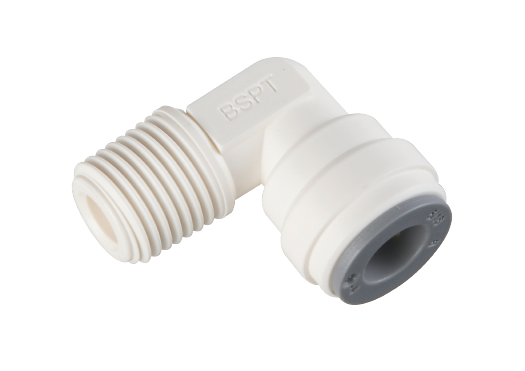

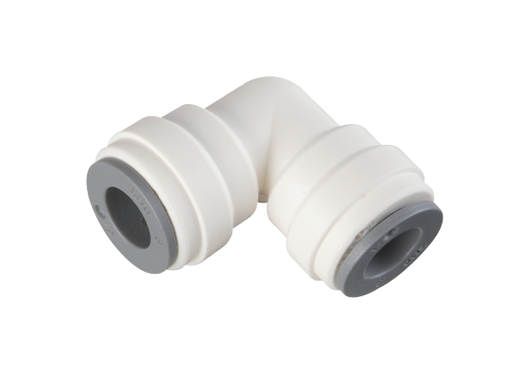

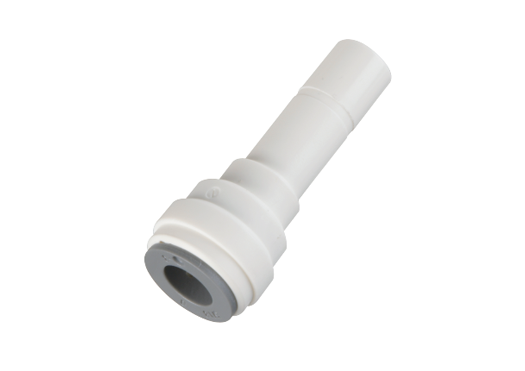

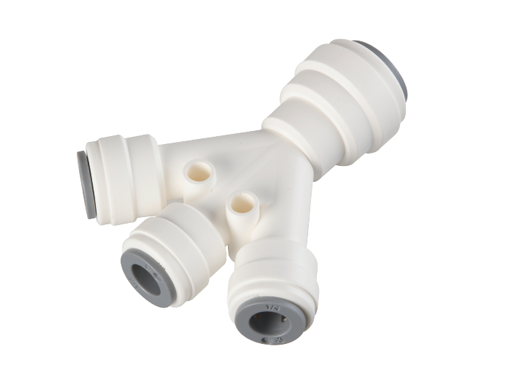

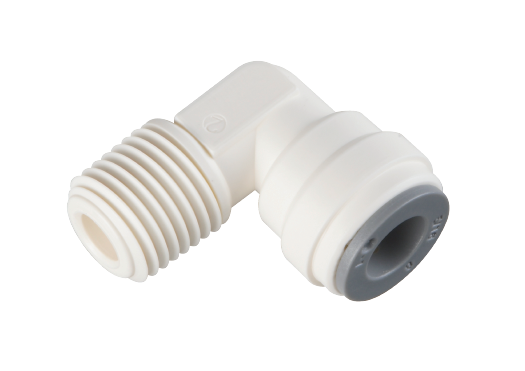

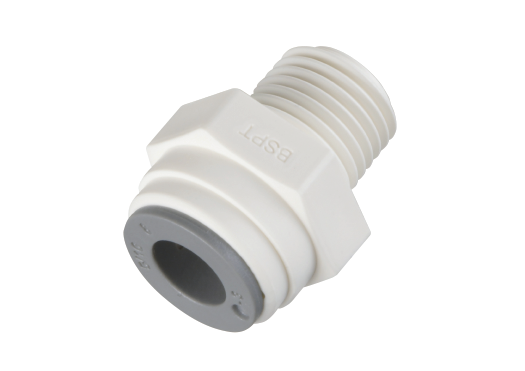

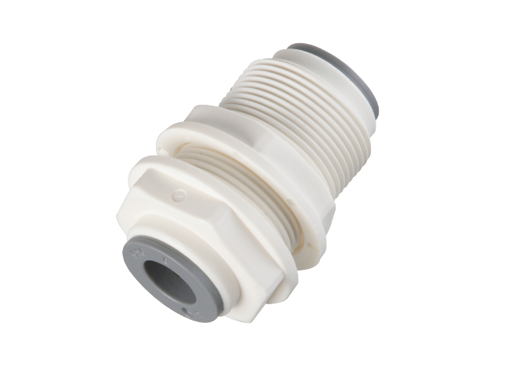

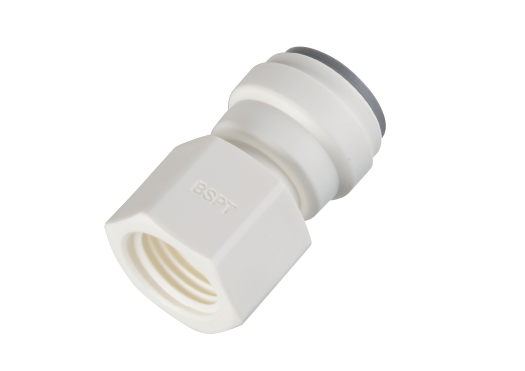

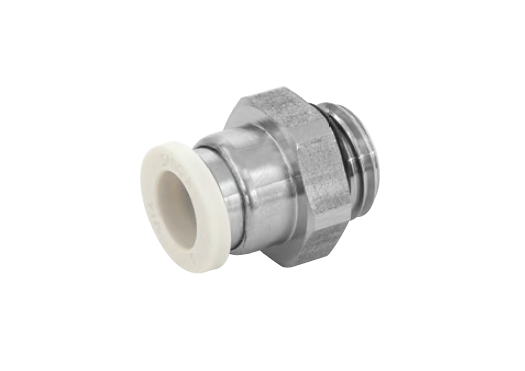

WATER FITTINGS

Application
  • One-touch joints used in water and beverage.
  • Used for a wide variety of models to meet all need.

Feature
  • Approved for compliance with FDA in Water purifier and beverag es.
  • They're suitable for drinking water by ANSI / NSF 61 certifica tions.
  • No need to connect/disconnect tools by one touch.
  • There is no risk of leakage because of Superior sealed functio n.
  • Process to assemble and packing in Clean Room.

Specification

Fluid	Water, Beverage
Working Pressure Range	0~230PSI	0~16Kgf/㎠(0~1,570kPa)
Working Temperature Range	-34~140℉	0~65℃

Maximum Usable Pressure

Temperature/Size	5/32˝	3/16˝	1/4˝	5/16˝	3/8˝	1/2˝
	4mm	5mm	6mm	8mm	10mm	12mm
1℃(34℉)	16bar (230PSI)				11bar (170PSI)
20℃(68℉)	16bar (230PSI)				11bar (170PSI)
65℃(150℉)	10bar (150PSI)				7bar (100PSI)
