Tube and thread type selection
If you select the detail type, only the product type of that type is displayed.

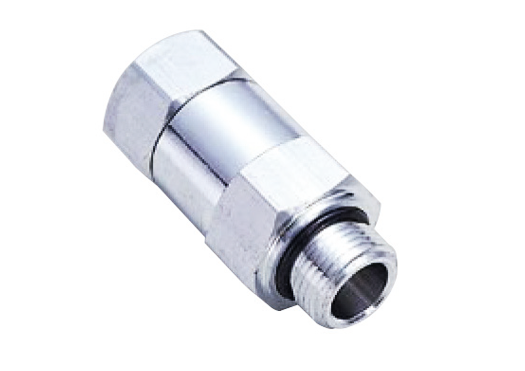

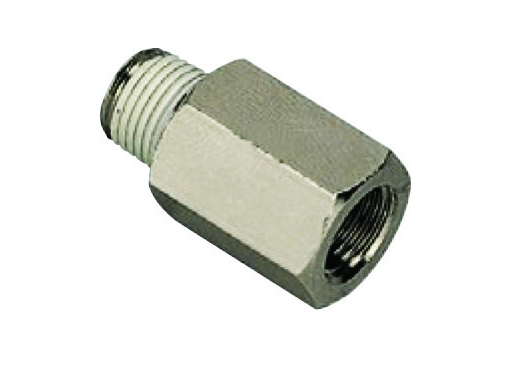

  • Check Valves permit airflow in one direction.
  • Used for maintaining the output pressure at a constant level.

  • The check valves permit the airflow in one direction but stops in the reverse direction.
  • The check valve works at the pressure of 0.1Kgf/㎠, keeps 1.42PS I in vacuum and connects at a low ressure.
Fluid Air(No other gases or liquids)
Working Pressure Range 0∼284PSI 0∼20Kgf/㎠(0∼1960kPa)
Negative Pressure -29.5inHg -750mmHg(10Torr)
Temperature Range 32∼176℉ 0∼80℃
Applicable Tube Material Polyurethane and Nylon
